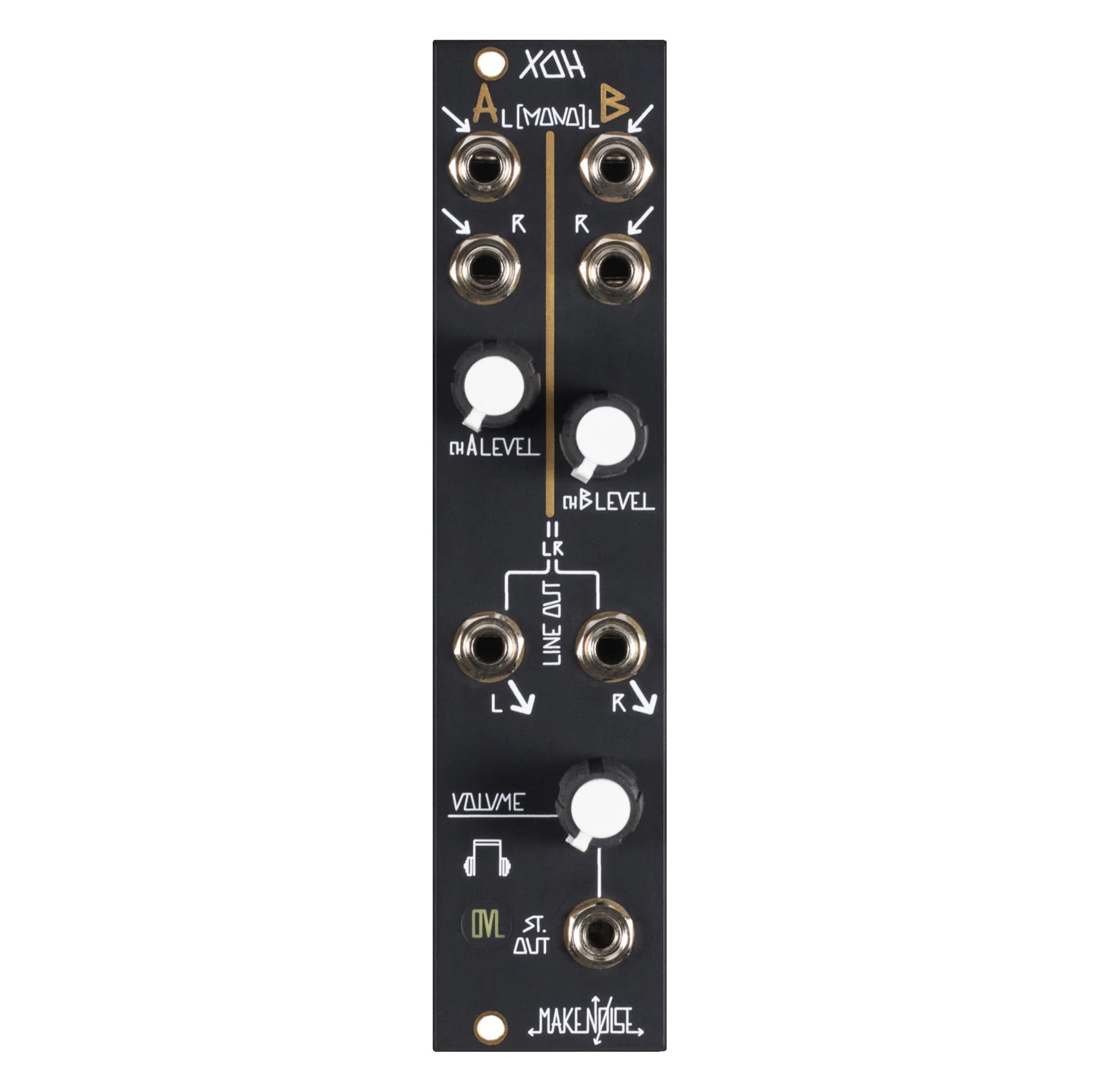

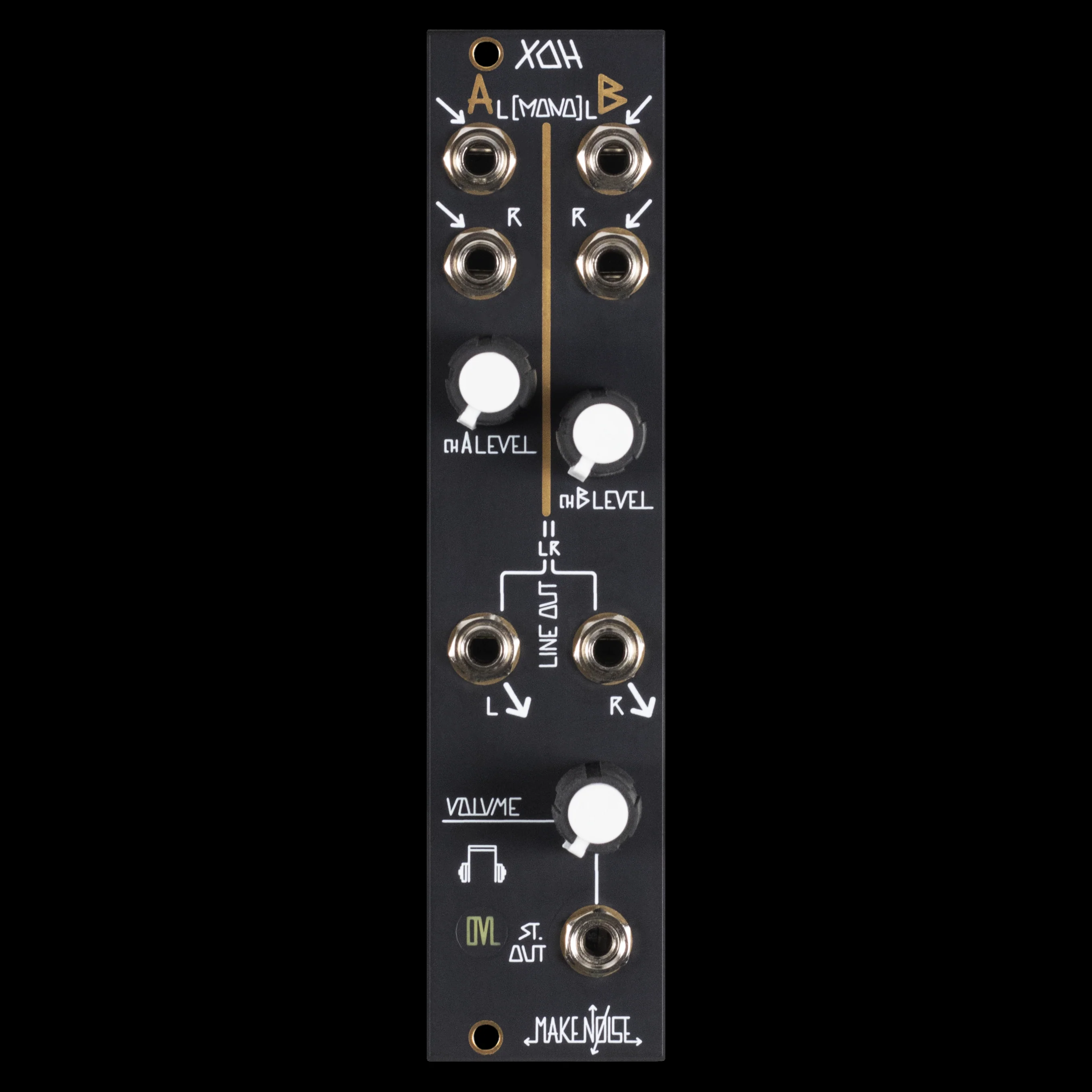

Make Noise XOH Stereo/Headphone Output Module

The XOH (miX Out Headphone) music synthesiser module is a 6HP stereo mixer, headphone amplifier and output interfacing module for your modular synthesiser. It consists of two stereo input channels with independent level controls, and two stereo outputs: one pair of independent line level left and right outputs at unity gain; and one TRS headphone or line level output with dedicated level control.

• Works with stereo modules: EV, MG, QPAS, X-PAN, MP
• Two mono/stereo input channels, ChA & ChB
• Independent level controls for ChA & Ch B -       Two stereo outputs containing A/B mix
• Independent unity gain L/R Line Level outputs
• TRS Headphone and Line Level output with level control (same line drive circuit used in the CV Bus Case)
• Adjust Modular Level signals down to Line Level with soft Limiting to protect your ears and line level gear

6hp 40mA @+12V 40mA @-12V

Video: https://youtu.be/WH2KyTvFUms

Product Specs

• Item Number: 13099
• Make: Make Noise
• Model: XOH
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: External Mixer
• Made In: United States
• MPN: XOH
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 6 HP 24 mm deep
• Power: 40 mA +12V 40 mA -12V 0 mA 5V
