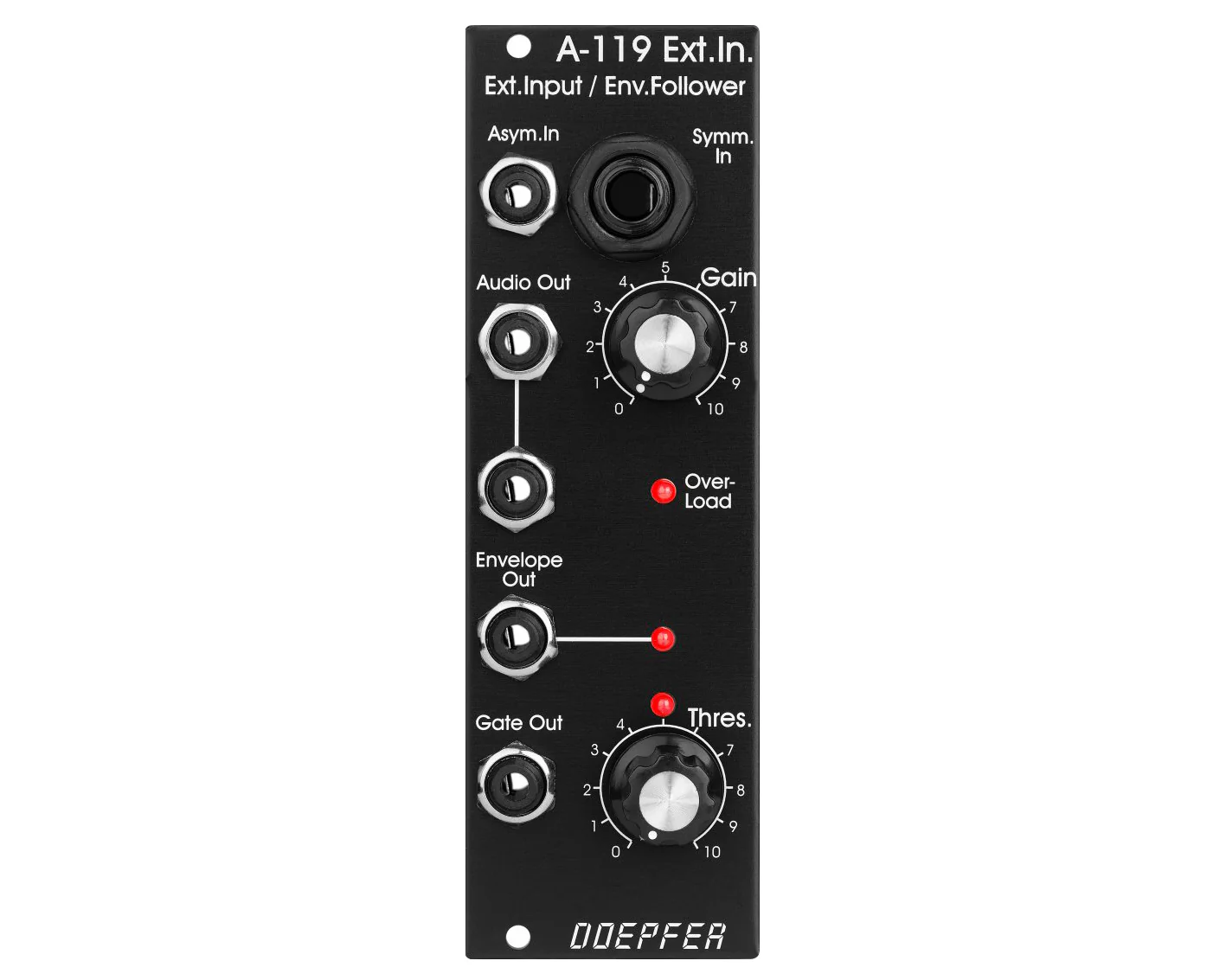

Doepfer A-119v External Input / Envelope Follower

Module A-119 (External Input / Envelope Follower) is designed to allow external audio signals to be integrated into the System A-100. It comprises a pre-amp, envelope follower, and comparator.

The pre-amp features two inputs: an unbalanced input for line level signals, with a gain factor of from 0 to 20, and a balanced input with a gain factor of from 0 to 500, for insertion of low level signals, for instance from a microphone or electric guitar.

The envelope follower reads the signal level of the input, and puts out a proportional voltage as an envelope at its own output.

The comparator generates a gate signal whenever the input goes above an adjustable trigger threshold.

Three LEDs help you keep track of overload, the envelope, and the gate signal.

Video: https://youtu.be/5G0N-QDZaxc

Product Specs

• Item Number: 15931
• Make: Doepfer
• Model: A-119v
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Follower External PreAmp
• Made In: Germany
• MPN: A-119V
• EAN: 4250711111915
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 8 HP 45 mm deep
• Power*: 30 mA +12V 20 mA -12V 0 mA 5V

* User contributed details
