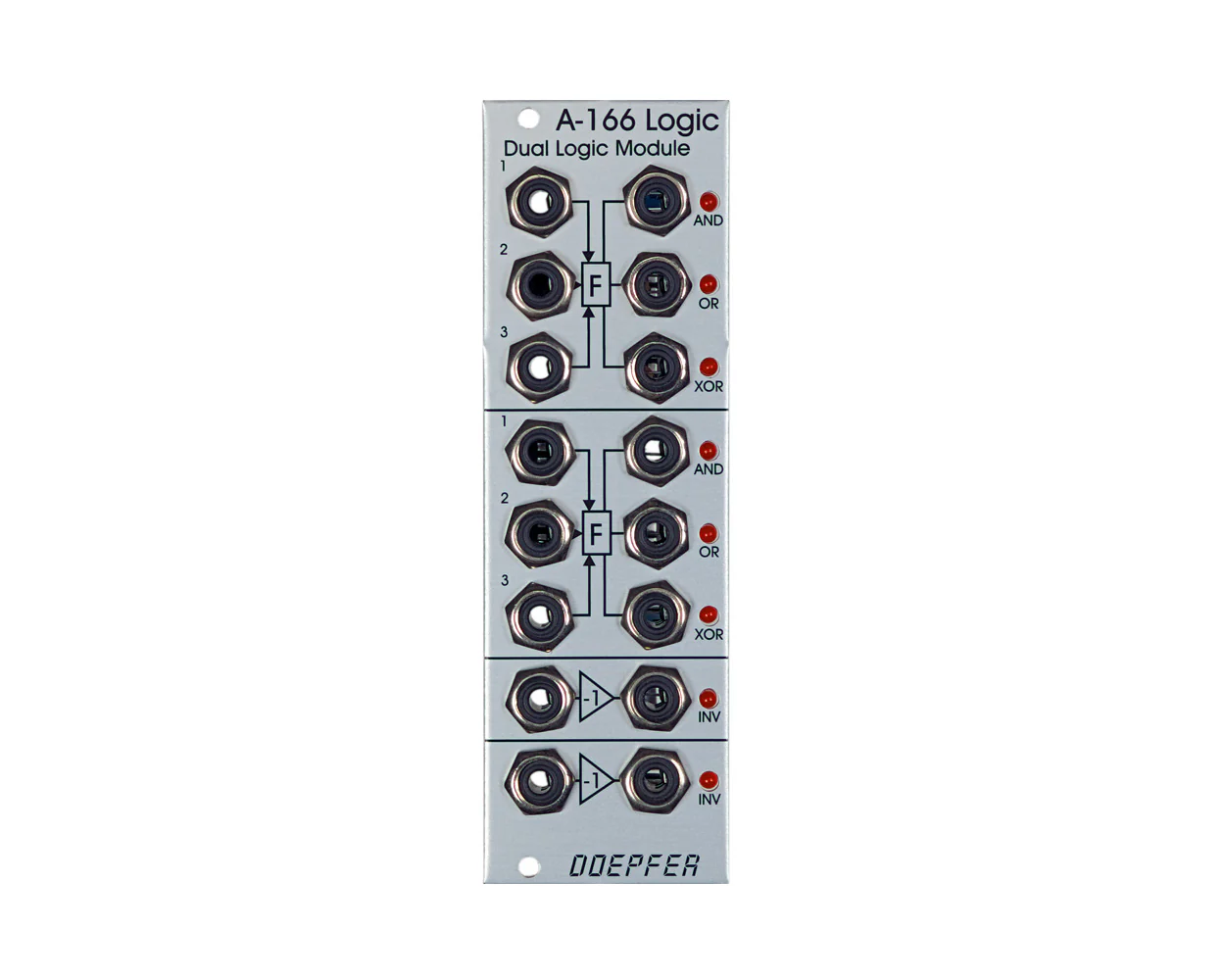

Doepfer A-166 Dual Logic Module

The Doepfer A-166 is a 3-way logic module featuring two internal signal inverters.
Each of the logic sections can accept three gates, while its outputs consist of AND, OR, and XOR logic functionality.
Additionally, the module’s built-in inverter enables you to achieve inverted logic functions: NAND, NOR, and NEXOR. This module is a great way to achieve shifting patterns and rhythmic variety.

Features:

• Two AND/OR/XOR logic circuits with 3 inputs each
• Normalization allows for two-input logic
• Two built-in inverters

Video: https://youtu.be/hEGarOW7V80

Product Specs

• Item Number: 17270
• Make: Doepfer
• Model: A-166
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Dual/Stereo Logic
• Made In: Germany
• MPN: A-166
• EAN: 4250711116606
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 8 HP 50 mm deep
• Power*: 40 mA +12V 20 mA -12V 0 mA 5V

* User contributed details
