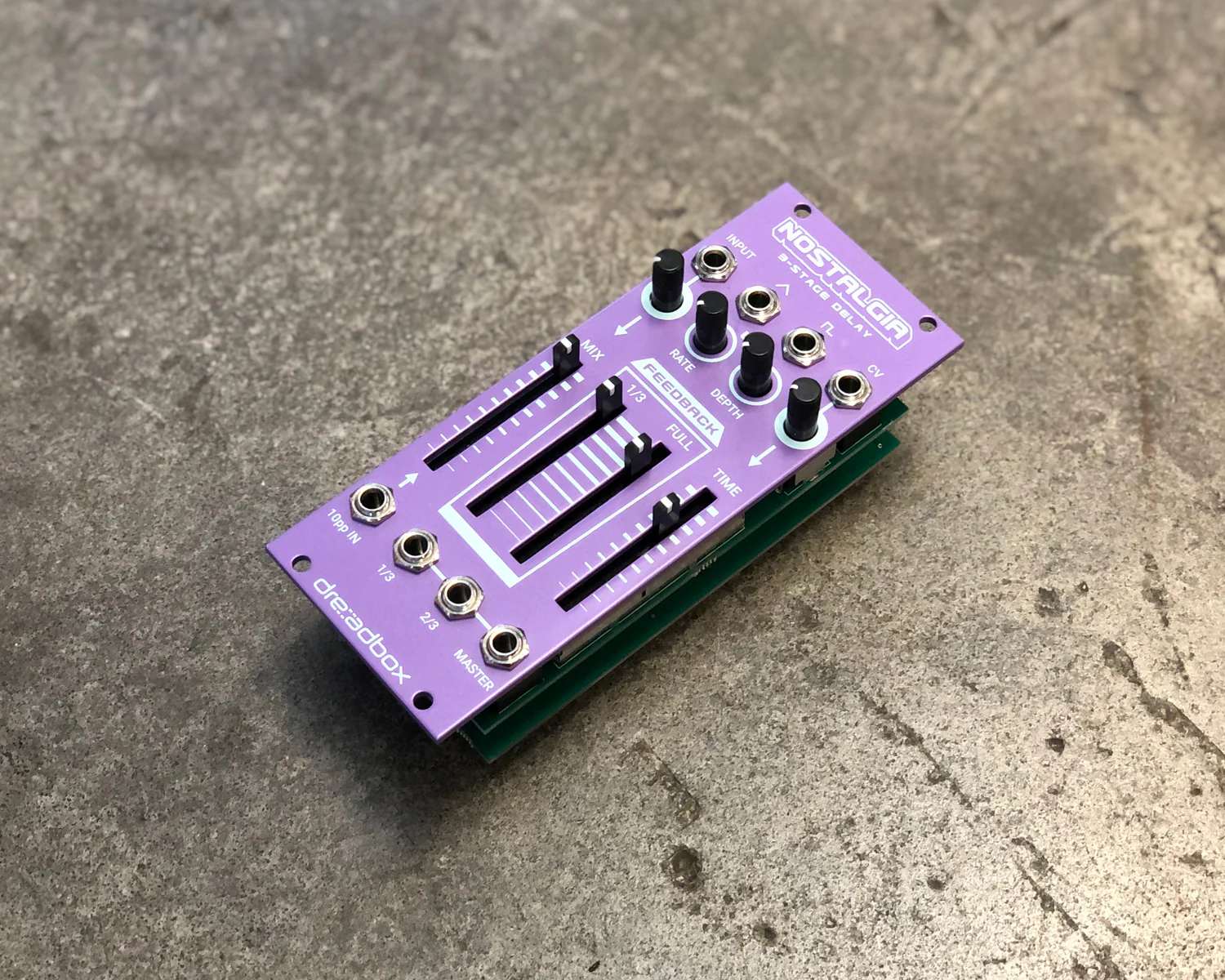

Dreadbox Nostalgia

10hp 3 Stage Hybrid Delay based on the Erebus’s Circuit.

• Consisted of 3 echo circuits in series
• Outputs for stage 1 and 2 (output level is 1/2 lower than the incoming signal)
• 2 different Feedback controls for different stages
• LFO with range
• Voltage Controlled Delay Time with range from 30ms up to 1sec
• Separate input for modular level signals
• And separate input for signals up to guitar levels
• 35mm depth
• 10HP

Includes ribbon cable. No box or screws included.

Video: https://youtu.be/g87rDUwPjVc

Product Specs

• Item Number: 18972
• Make: Dreadbox
• Model: Nostalgia
• Condition: Excellent
• Finish: Purple
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Delay Effect External LFO
• Made In: Greece
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 10 HP 35 mm deep
• Power*: 117 mA +12V 25 mA -12V 0 mA 5V

* User contributed details
