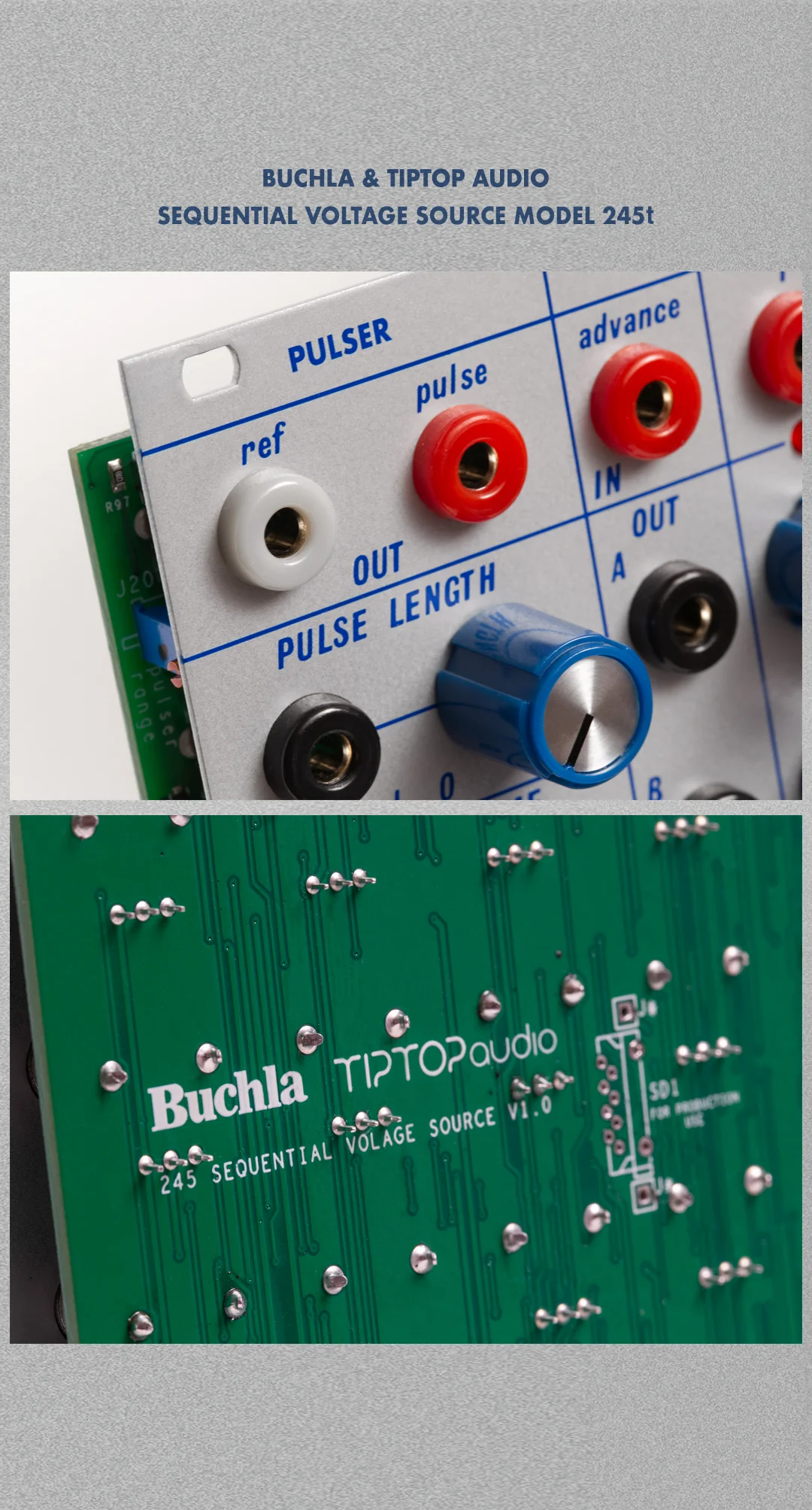

Tiptop Audio Buchla Model 245t Sequential Voltage Source
TipTop Audio's Buchla Model 245t Sequential Voltage Source is a faithful recreation of Buchla's famed five-stage, four-row sequencer in the Eurorack format. One of several 200 series adaptations developed in collaboration with Buchla USA, the 245t is a one-to-one replica of the original Buchla 245, remade to fit the Eurorack standard. Divided into two sections, the 245t is comprised of a pulser section (a voltage-controllable clock) with transport controls, as well as the main sequencer section, which offers four rows of highly-customisable five-step sequencing.
BUCHLA 245T FEATURES
- Five-stage sequential voltage source module
- Eurorack recreation of Buchla's classic 200-series 245
- Four lanes of five stages, each with their own CV positioning and outputs
- Select each stage via a pulse input or sweep/jump through stages via the analog CV input
- Loop at different stages via the input jack switches
- Each stage sends a pulse output at the top of the module
- Advance to the next stage with an external pulse/clock via the advance in
- Internal clock features a rate control as well as a modulation input and attenuverter
- Manually or CV control the start and stop of the internal clock
- Pulser clock features a pulse output as well as a reference saw wave output
- Pulser's pulse width or "length" can be set or modulated via CV
- Banana jacks replaced with 3.5mm minijacks for full Eurorack integration
Video: https://youtu.be/vWT6L0gkSUA
Product Specs
- Item Number: 22680
- Make: Tiptop Audio
- Model: Model 245
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Clock Generator Sequencer Quad
- Made In: Thailand
- MPN: TTA-245t
- EAN: 8859469914036
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 30 HP 25 mm deep
- Power*: 63 mA +12V 28 mA -12V ? mA 5V
* User contributed details
