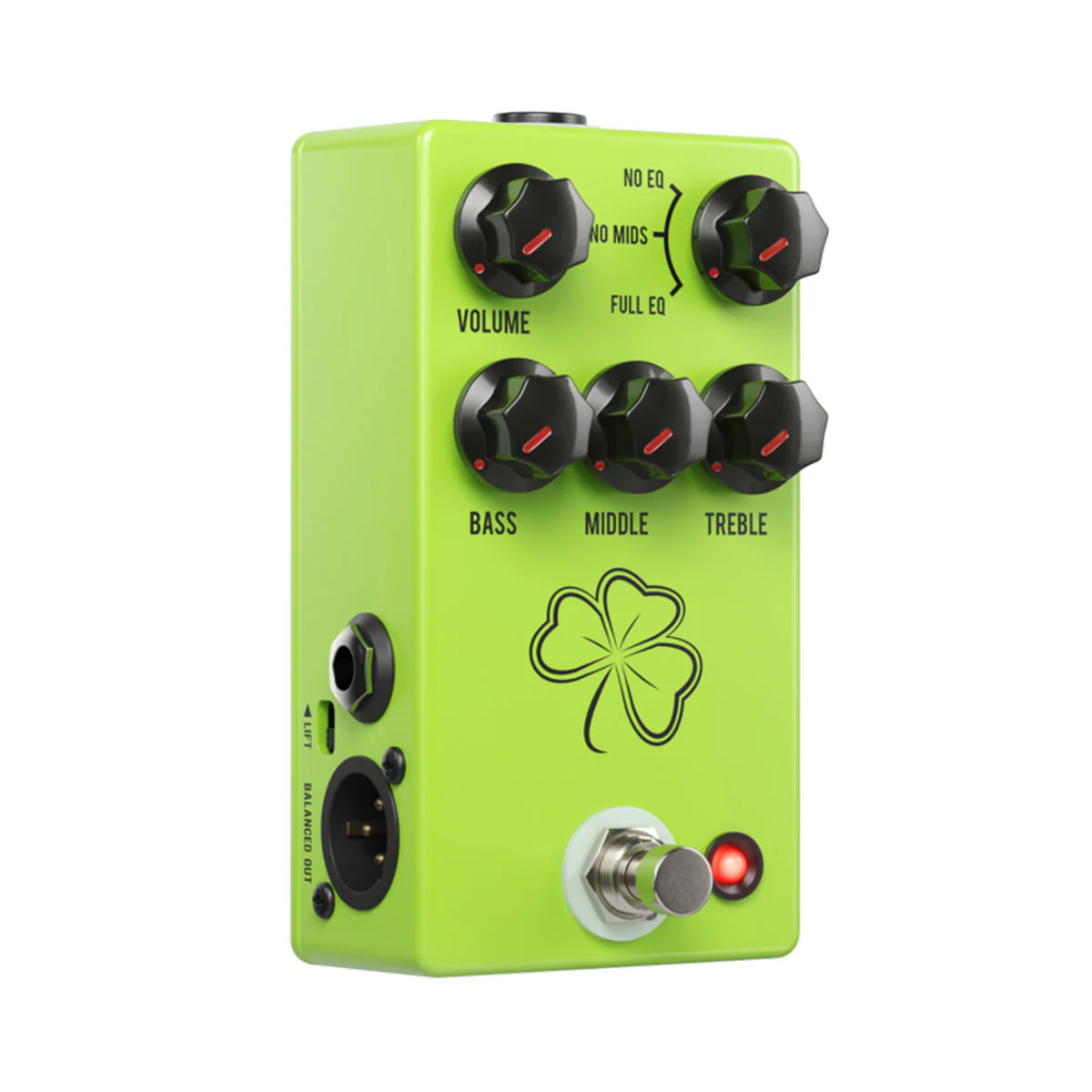

JHS Pedals Clover EQ Tone-Shaping Pedal

The Clover is JHS Pedals' faithful interpretation of the classic 1984 Boss FA-1 FET Equaliser pedal - a classic tone-shaper used by legends like The Edge (U2). The nitty gritty: The XLR output is identical to the 1/4” output. Has up to +24dB of gain (X16.4) (EQ Flat). Treble +/- 15dB shelving filter at 10kHz Middle +/- 15dB peaking filter at 1.3kHz Bass +/- 15dB shelving filter at 270Hz (3dB freq) Lo cut engaged -3dB point at 212Hz Input impedance >1M ohm Output impedance = 520ohms Current draw at idle = 45.5mA

Product Specs

• Item Number: 23756
• Make: JHS Pedals
• Model: Clover
• Condition: Brand New
• Finish: Lime
• Categories: effects-and-pedals ⇒ eq ⇒ pedal
• Function: PreAmp Distortion
• Made In: United States
• MPN: JHS-CV
• UPC: 650415212088
• Modular Grid: Pedals ⓘ ＋
• Dimensions*: 66 mm wide 41 mm high
• Power*: ? mA / ? V AC/DC

* User contributed details
