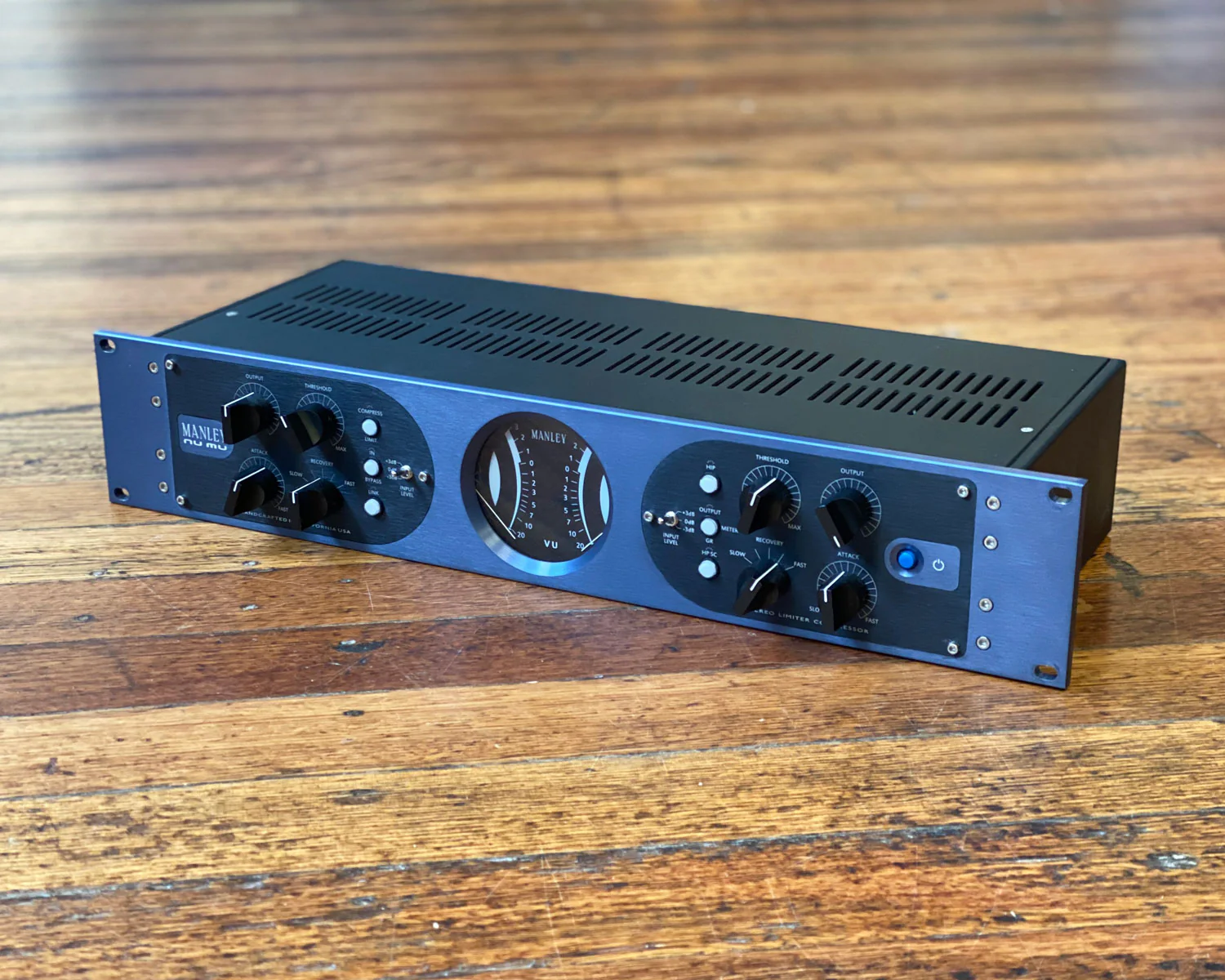

Manley NU MU

The Manlye Nu Mu is a stereo limiter compressor that features an all valve front end (based off the highly regarded Variable Mu) followed by a solid state audio chain to give the user smooth dynamics that don't sacrifice punch, presence or pop.

Making use of Manley's HIP function, the Nu Mu can tighten dynamic control and smoothly and organically bring up lower level details without losing the energy and excitement out of your transients, essentially a focus of compression on low level signals that largely leaves louder signals uncoloured. Handbuilt in California, the Nu Mu is ergonomically designed with a sleek modern look and is a great addition to any studio. Crush it!

Features

• Manley IRON® input transformers
• 4 x hand-matched 6BA6 vacuum tubes
• Balanced XLR inputs & outputs
• Manley HIP function raises soft dynamics without squashing louder passages
• High Voltage Switched Mode Power Supply custom designed for our vacuum tube audio circuits

Controls & Switches

• Input Level Preset 3-way switches
• Continuously variable Output level controls
• Variable Attack: 25msec-70msec
• Recovery switch 5 steps: 0.2s, 0.4s, 0.6s, 4sec., 8sec.
• Continuously variable Threshold controls
• Hardwired Relay Bypass Switch
• Ratio Mode switches between Limit(4:1 to 20:1) or Compress (1.5 to 1)
• HP SC: High Pass Side Chain Filter -3dB @ 100Hz
• Stereo Link establishes Left-Master dynamic control
• Beautiful illuminated stereo VU meters read Gain Reduction or Output Level
• Universal internal power supply operates worldwide 90-250V~AC 50/60Hz

Includes new replacement tubes

Video: https://youtu.be/Rv9SLDUZSwY

Product Specs

• Item Number: 28284
• Make: Manley
• Model: NU MU
• Condition: Excellent
• Finish: Grey
• Categories: pro-audio ⇒ compressors-and-limiters
• Made In: United States
• MPN: 28284
