Ladik Synare

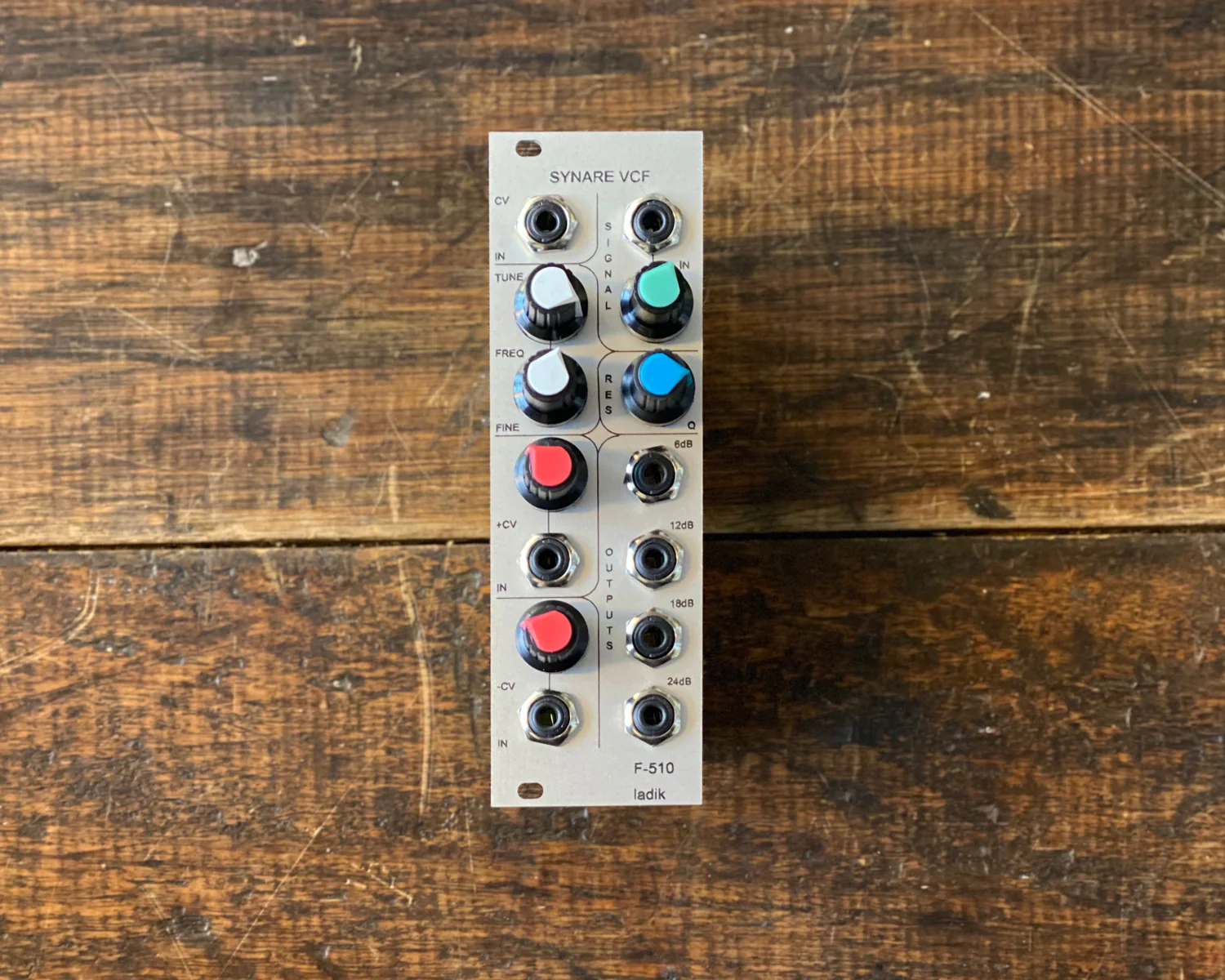

Featuring the same filter topology as Roland Juno-6, Juno-106 (and more) the F-510 Synare VCF LP filter module is a voltage controlled low pass filter with four different slope outputs, 1V/oct input and variable +CV and inverting -CV inputs.

Left column

CV input jack (1V/oct) 2 filter frequency knobs (coarse & fine) variable +CV knob & jack variable -CV knob & jack (positive going voltage decreases filter frequency)

Right column

Audio input jack & knob Resonance knob (Q) – self-oscillating near maximum setting 4 output jacks for 6-12-18-24dB/oct slope

Technical specifications * 8HP * 52mm /2″ max * 25mA max

Product Specs

• Item Number: 29119
• Make: Ladik
• Model: Synare
• Condition: Excellent
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• MPN: 29119
