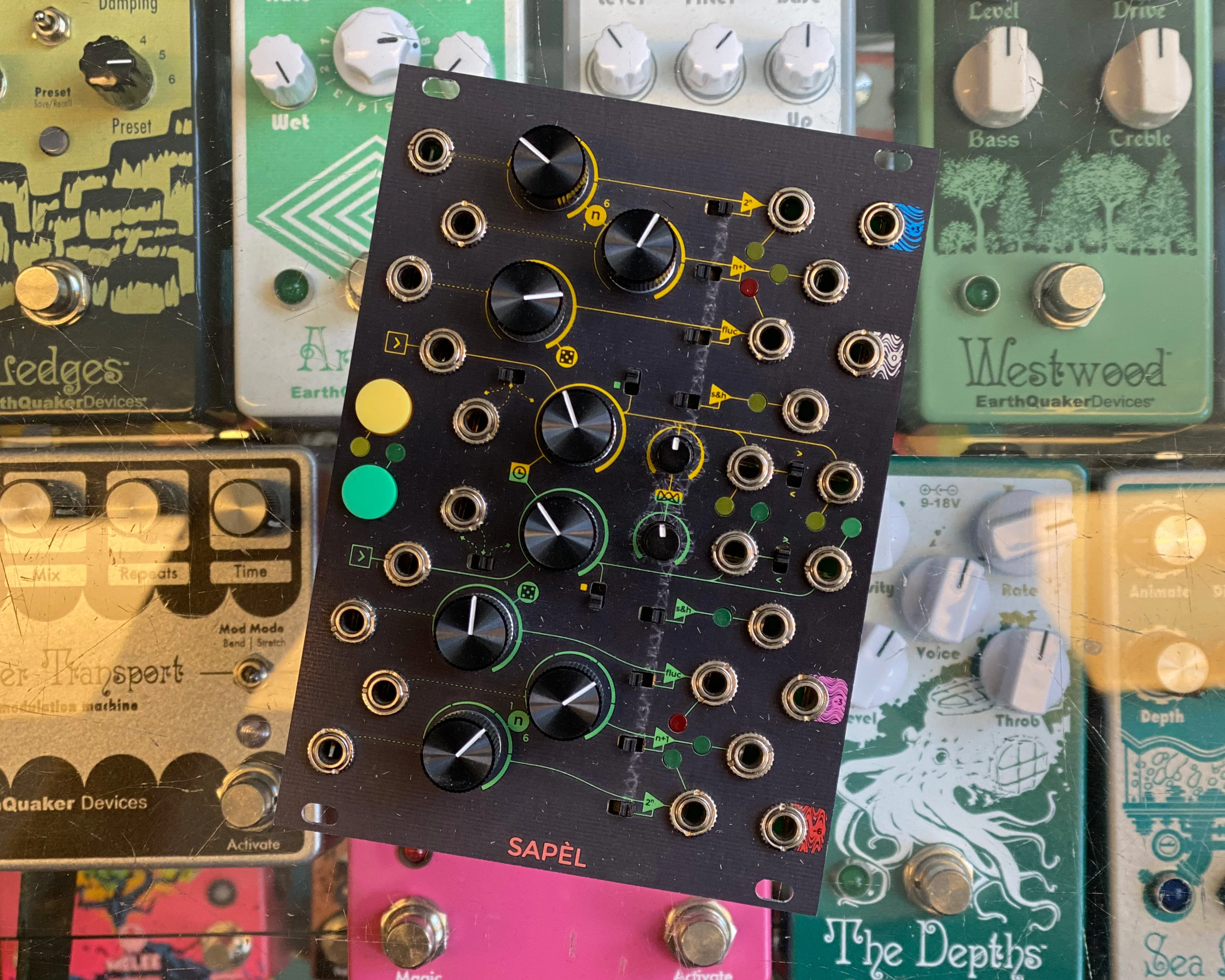

Frap Tools Sapèl Tamed Random Source

The Frap Tools Sapel is an 18HP multifarious random source module that provides several useful functions, including four distinct random audio-rate signals (blue, white, pink, and red noise), random low frequency signals (both quantised and normal), and random clocks.

The low frequency random section features dual sample and hold circuits, with the option to quantize the output signals of each. The internal clocks govern the random speed and can be manually triggered via push buttons, or can be replaced with external clock signals.

FEATURES:

• Blue noise (+3dB/oct spectrum)
• White noise (0dB/oct spectrum)
• Pink noise (-3dB/oct spectrum)
• Red noise, a.k.a. brown or brownian (-6dB/oct spectrum)
• Fluctuating random voltage
• Quantised random voltage with 2n stages tuned in semitones referred to 1V/oct scale
• Quantised random voltage with n+1 stages tuned in octaves referred to 1V/oct scale
• Non quantised sample & hold.

Includes ribbon cable & box.

Video: https://youtu.be/uwPoF2EEgmo

Product Specs

• Item Number: 29882
• Make: Frap Tools
• Model: Sapèl
• Condition: Very Good
• Finish: Thin Film Interference
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Clock Generator Clock Modulator CV Modulation Dual/Stereo Noise Quantizer Random Sample and Hold
• Year: 2020s
• Made In: Italy
• MPN: 29882
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 18 HP 38 mm deep
• Power: 250 mA +12V 170 mA -12V 0 mA 5V
