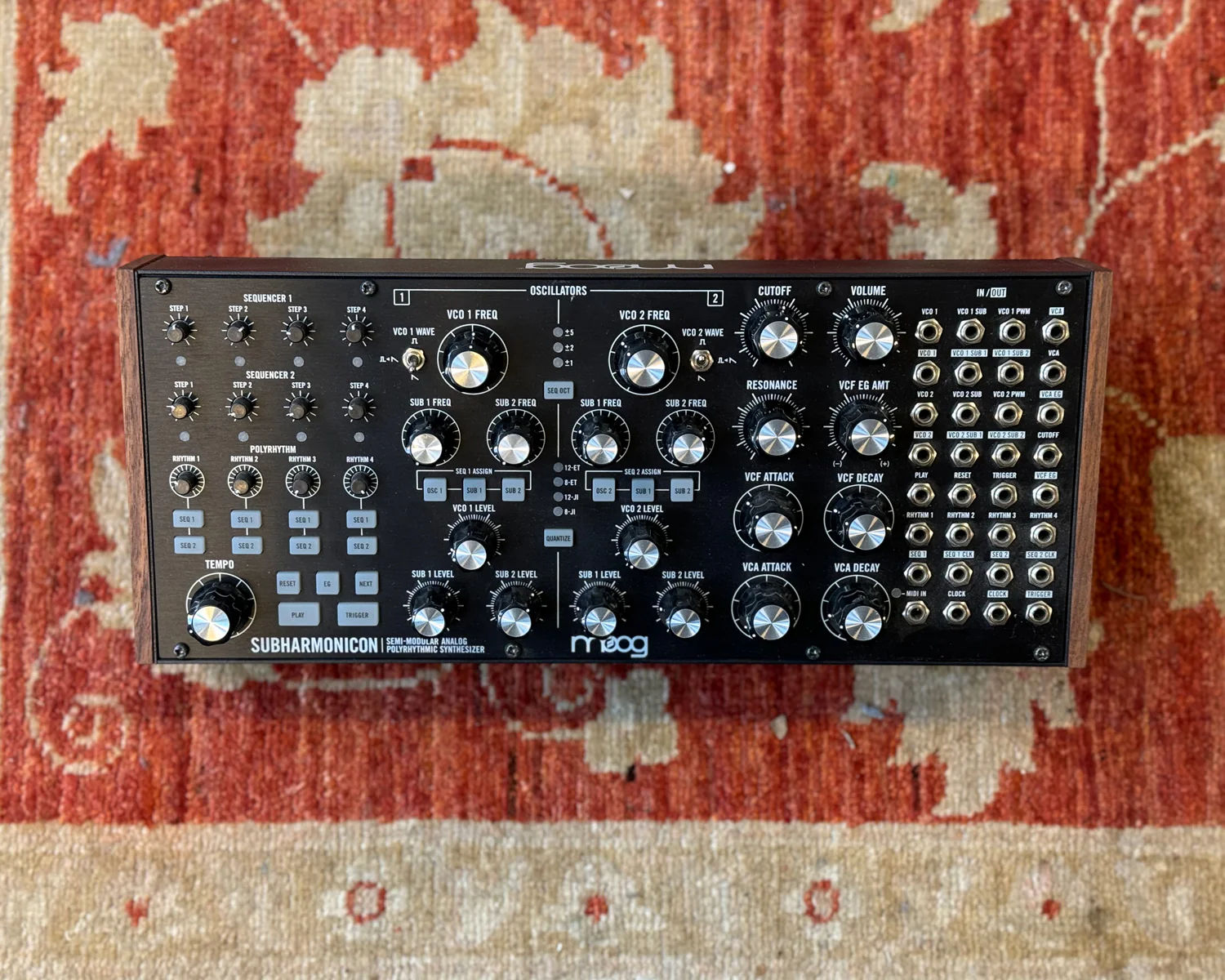

Moog Subharmonicon Semi-Modular Polyrhythmic Analogue Synthesizer

Subharmonicon From Moog is a semi-modular polyrhythmic analogue synthesiser designed for the experimentation of rhythms that evolve over the sequence, twisting through six-tone subharmonic chords and organic polyrhythms.    It's unique approach to music-making is inspired by the innovative ideas on electronic instruments and experimental music that emerged during the 1930s and 1940s. Combining music and mathematics, these early avant-algorithmic concepts laid a foundation for our modern exploratory practices. (See Joseph Schillinger, Oskar Sala, and Leon Theremin)   Subharmonicon is capable of complex sounds and patterns, with a simple and intuitive user interface. Featuring 2x VCOs, 4x Subharmonic Oscillators, 2x 4-Step Sequencers, and 4x Rhythm Generators, Subharmonicon creates a rich harmonic kaleidoscope that divides into itself until everything is turned on its head.

ANALOG SOUND ENGINE * SOURCES: VCO 1, SUB 1, SUB 2 / VCO 2, SUB 1, SUB 2 * FILTER: Self-Oscillating Ladder Filter, Low-Pass, 4-Pole (-24 dB/Octave) * ENVELOPES: VCA EG (Attack, Decay); VCF EG (Attack, Decay)

ANALOG SEQUENCERS (x2)

• STEPS: 4 Steps per Sequencer, selectable Quantization
• CLOCK: Driven by any and all of the Rhythm Generators

RHYTHM GENERATORS (x4)

• RHYTHM: Derived by dividing the Tempo by an integer value (1-16)
• CLOCK: 20 BPM to 3,000 BPM (Beats per Minute; 1 Pulse per Quarter-note), MIDI Clock, EXT CLOCK

PATCHBAY

• JACKS: 32 x 3.5mm
• INPUTS: 17 Input Jacks
• OUTPUTS: 15 Output Jacks
• MIDI: 3.5mm MIDI Input (Type A dongle included)

REAR PANEL

• AUDIO: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
• POWER: Power supply connection
• SECURITY: Kensington lock slot

WEIGHTS AND DIMENSIONS

PRODUCT:

• Imperial (in.): 4.2h x 12.57w x 5.24d
• Metric (cm): 10.67h x 31.93w x 13.31d
• Weight: 3.5 lbs.
• Metric Weight: 1.58 kg

SHIPPING:

• Imperial (in.): 8h x 15w x 9d
• Metric (cm): 20.32h x 38.1w x 22.86d
• Imperial Weight: 6 lbs
• Metric Weight: 2.72 kg

POWER SUPPLY (INCLUDED)

• STYLE: Wall adapter; barrel connection; center-pin positive
• INPUT: 100 – 240VAC; 50 Hz – 60 Hz
• OUTPUT: +12VDC; 1200mA

POWER CONSUMPTION

• TYPICAL: 4.8 Watts

EURORACK SPECS

• CURRENT DRAW: 360mA (maximum) from +12VDC (10-pin header)

• MOUNTING DIMS: 60HP (1” / 26mm Module Depth

Includes original manual, overlays & power supply.

Video: https://youtu.be/RcN5KmjX5UY

Product Specs

• Item Number: 33346
• Make: Moog
• Model: Subharmonicon
• Condition: Excellent
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Filter Frequency Divider Oscillator Synth Voice VCA MIDI
• Made In: United States
• MPN: 33346
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 60 HP 26 mm deep
• Power*: 360 mA +12V 0 mA -12V 0 mA 5V
