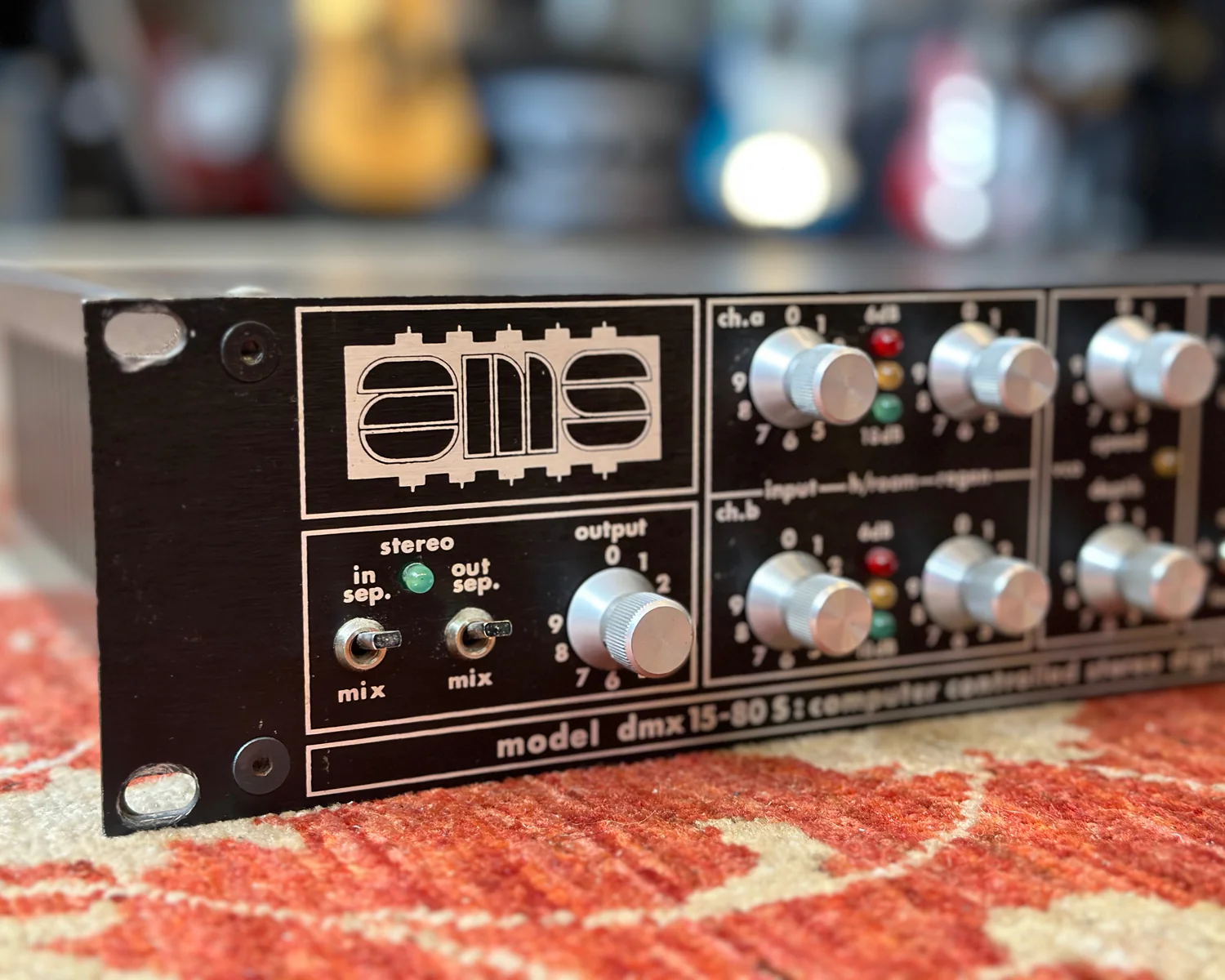

Vintage AMS DMX 15-80s Stereo Digital Delay

The AMS DMX 15-80s is a true classic outboard digital delay from the late '70s. Along with a beautiful design and high quality build, the DMX 15-80s employs 15-bit digital encoding, achieved by 12-bit conversion with three gain ranges of 6db each, allowing a 90dB dynamic range without the use of analogue compression/expansion techniques that inherently involve distortion problems such as noise breathing.

This unit includes two independent inputs and outputs, a pitch changing (hamonizing) function and the lock in delay loop function made for sampling. There is also a keypad on the side to manually punch in delay times, with nudge buttons to the side for fine adjustments.

Slightly scratchy input pots particularly on channel A. Otherwise in perfect working condition.

Video: https://youtu.be/Ul68QkR1AyI

Product Specs

• Item Number: 33385
• Make: AMS
• Model: DMX 15-80s
• Condition: Very Good
• Finish: Brown
• Categories: pro-audio ⇒ delay
• Year: 1970s
• Made In: United Kingdom
• MPN: 33385
