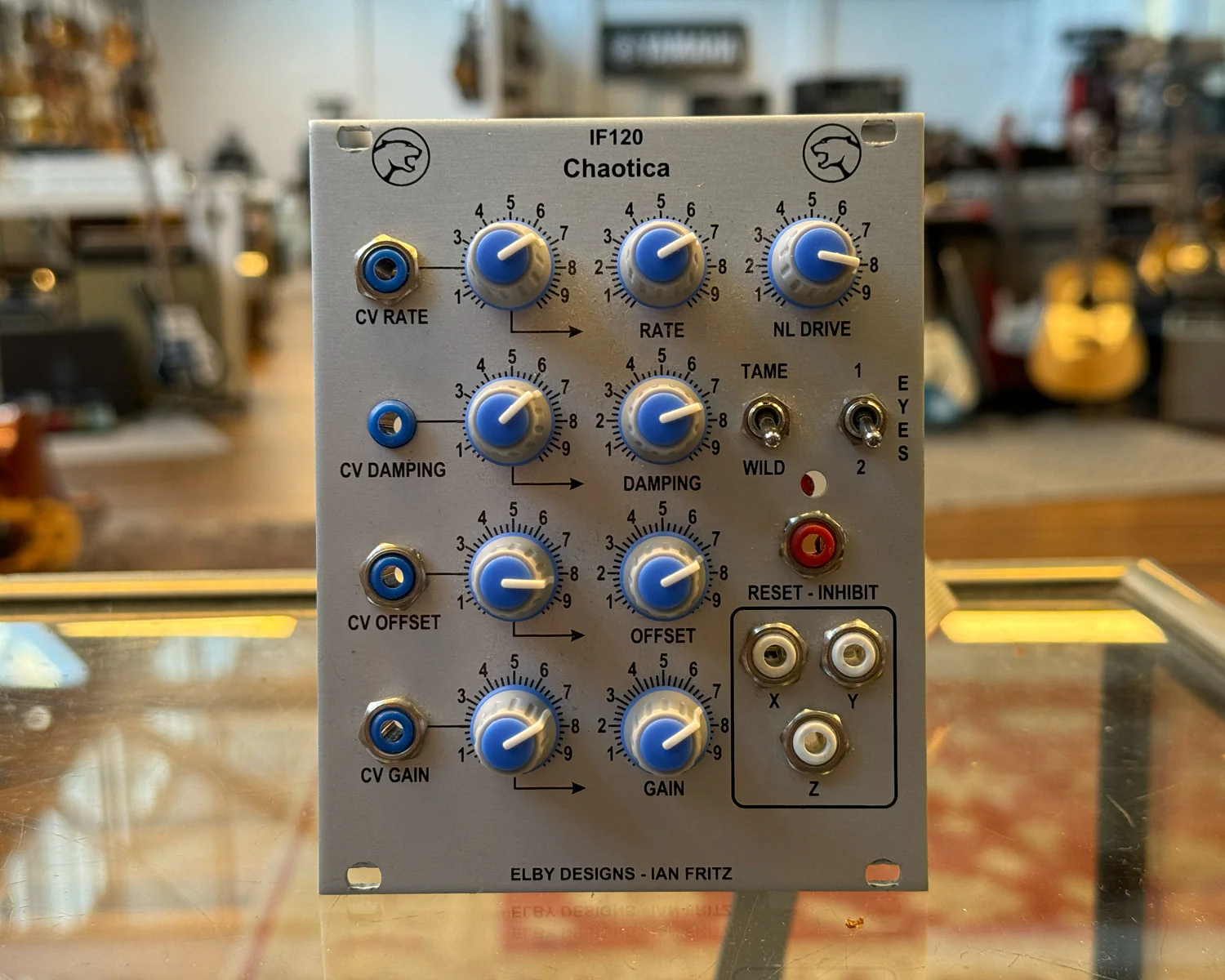

Elby Designs IF120 Chaotica Autonomous Chaos Circuit

The IF120 is an autonomous third-order chaos circuit designed to generate a wide range of chaotic signals. Key features include:

A third-order system with four nonlinear elements for diverse chaotic outputs. Exponential voltage control of frequency, ranging from sub-audio rates to kHz audio levels. Linear voltage control of loop damping, gain, and offset, enabling various sweep and modulation effects. A Reset/Inhibit input to set all integration stages to zero voltage, useful for creating complex periodic waveforms by varying reset pulse rates. Voltage outputs for three system variables: x, y, and z.

Dimensions;
* 3U x 20hp x 120 mm deep

Product Specs

• Item Number: 33393
• Make: Elby Designs
• Model: IF120 Chaotica
• Condition: Very Good
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: CV Modulation Noise Random
• Made In: Australia
• MPN: 33393
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 20 HP 120 mm deep
• Power*: 41 mA +12V 33 mA -12V 0 mA 5V

* User contributed details
