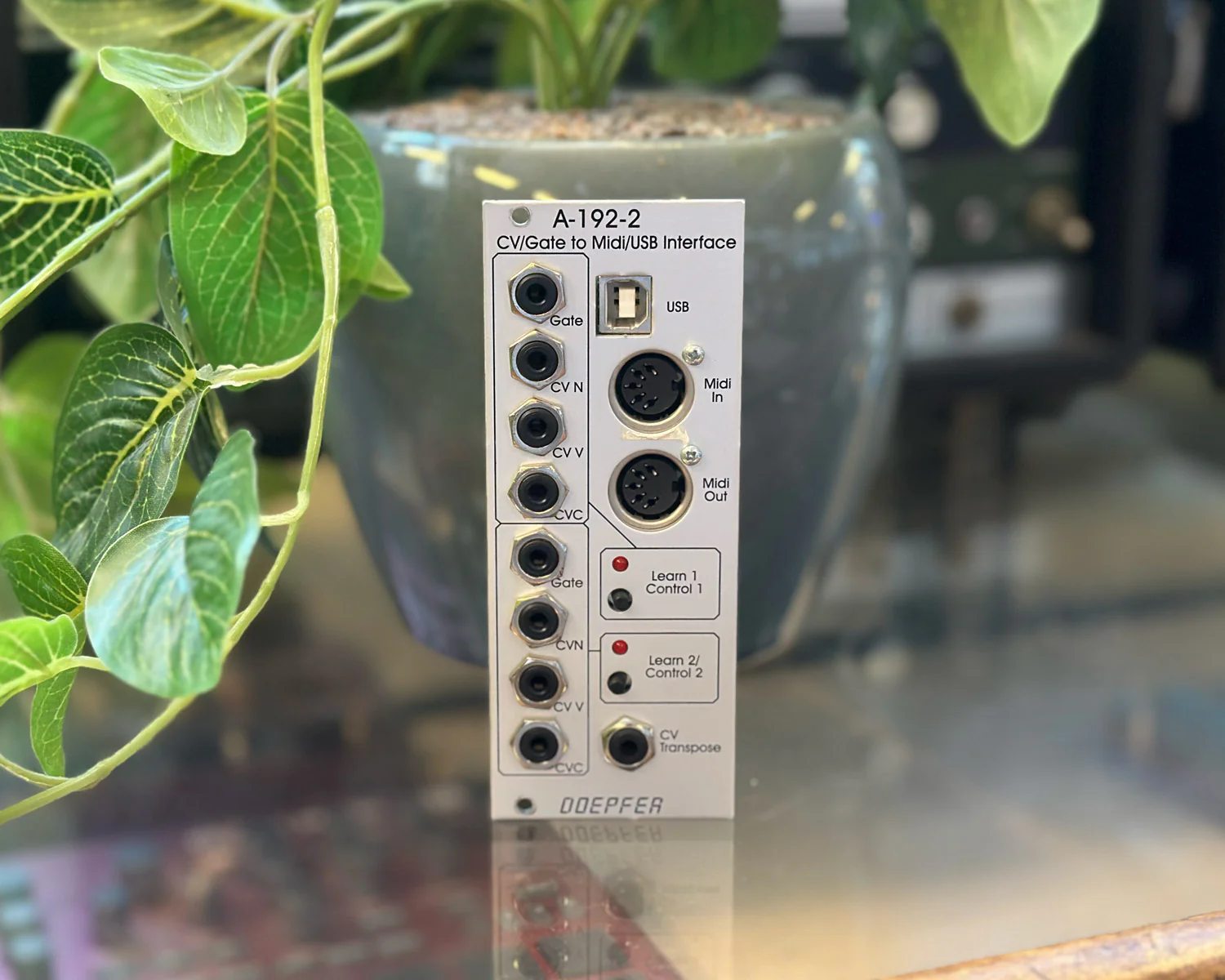

Doepfer A-192-2 Dual CV/Gate to Midi/USB Interface

The Doepfer A-192-2 is a dual CV/Gate to MIDI/USB interface module, allowing users to convert analog sequences into MIDI data. It features two CV/Gate channels with a common 1V/Oct CV Transpose input, enabling simultaneous transposition of two sequences with one voltage. The module generates a MIDI note whenever a gate signal's rising edge is detected, with the note number determined by the combined voltages at the CVN and CV Transpose inputs. Additionally, it can create random MIDI sequences when random voltages are patched in. An internal jumper allows for easy adjustment of incoming control voltages.

Video: https://youtu.be/Yn32TWesy1U

Product Specs

• Item Number: 33770
• Make: Doepfer
• Model: A-192-2
• Condition: Very Good
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: MIDI Dual/Stereo
• Made In: Germany
• MPN: 33770
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 10 HP 55 mm deep
• Power*: 70 mA +12V 20 mA -12V 0 mA 5V

* User contributed details
