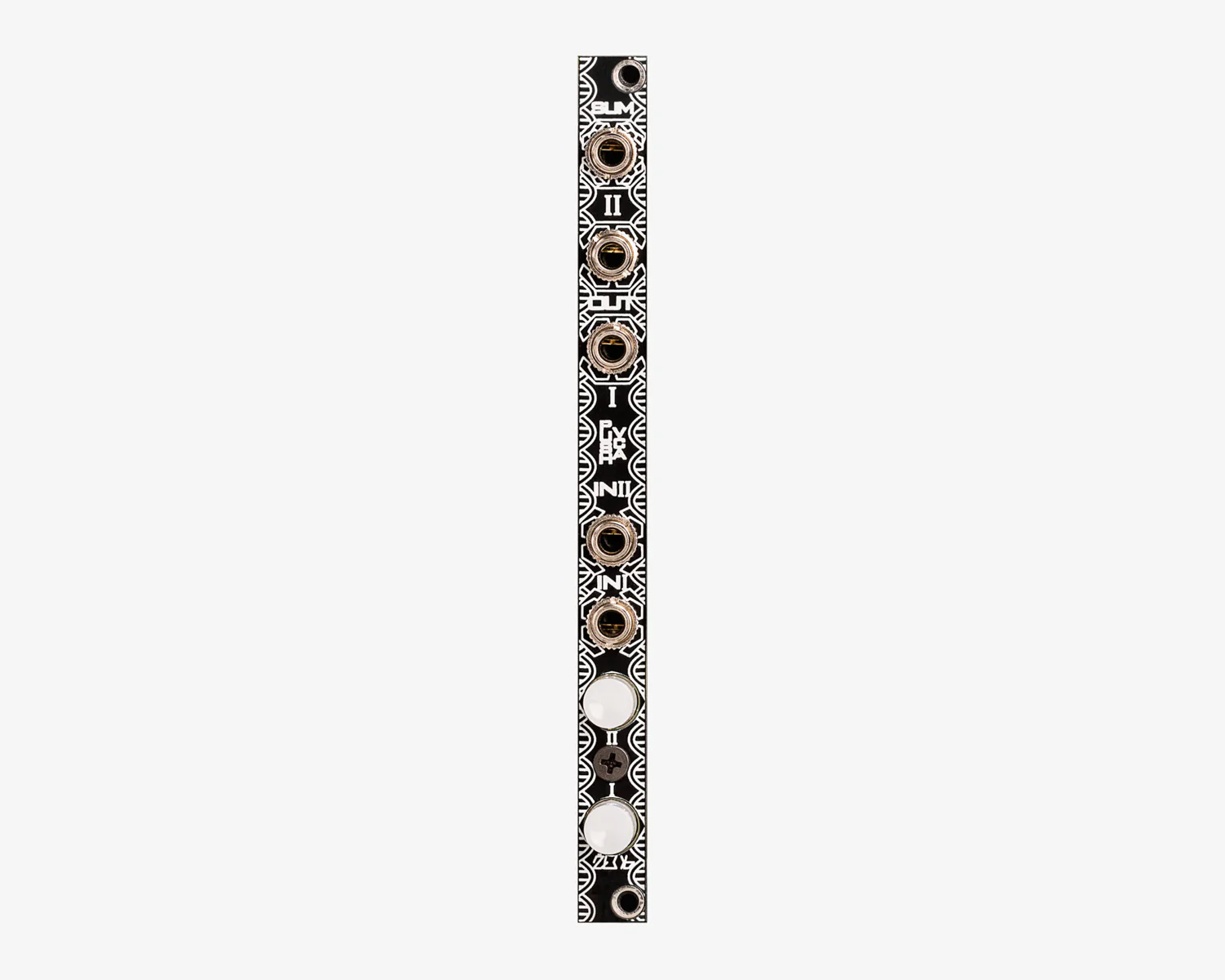

Żłob Modular Push VCA Eurorack Performance Mute Module (Momentary)

The Push VCA is a 2hp 2 Channel DC Coupled Mute Eurorack Module that features 2 independent unity gain DC coupled VCAs with led push button mutes. A mix of both channels is available at the sum, but all outputs are available simultaneously. The newest version has normalisations to +5v, so with nothing plugged into the ins voltage can be toggled on and off at the outputs and up to 10 volts can be output at the sum. At checkout specify if you want latching or momentary push buttons. led button colour may vary between red and yellow. but it will always be 2 of the same colour.

Specifications

• Width: 2hp
• Panel Material: PCB Reversible Panel(one side classic, other side soulless with less graphics)
• Reverse power protected Current Consumption +12v @50mA (when both buttons pressed, with red buttons. +40mA for yellow), -12v@ 10mA
• Depth: 50mm
• Ships with M3 black nylon screws

Product Specs

• Item Number: 34701
• Make: Żłob Modular
• Model: Push VCA Eurorack Performance Mute Module (Momentary)
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Dual/Stereo Utility VCA Switch Mixer
• Made In: United States
• MPN: ZLOB13
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 2 HP 60 mm deep
• Power: 40 mA +12V 20 mA -12V 0 mA 5V
