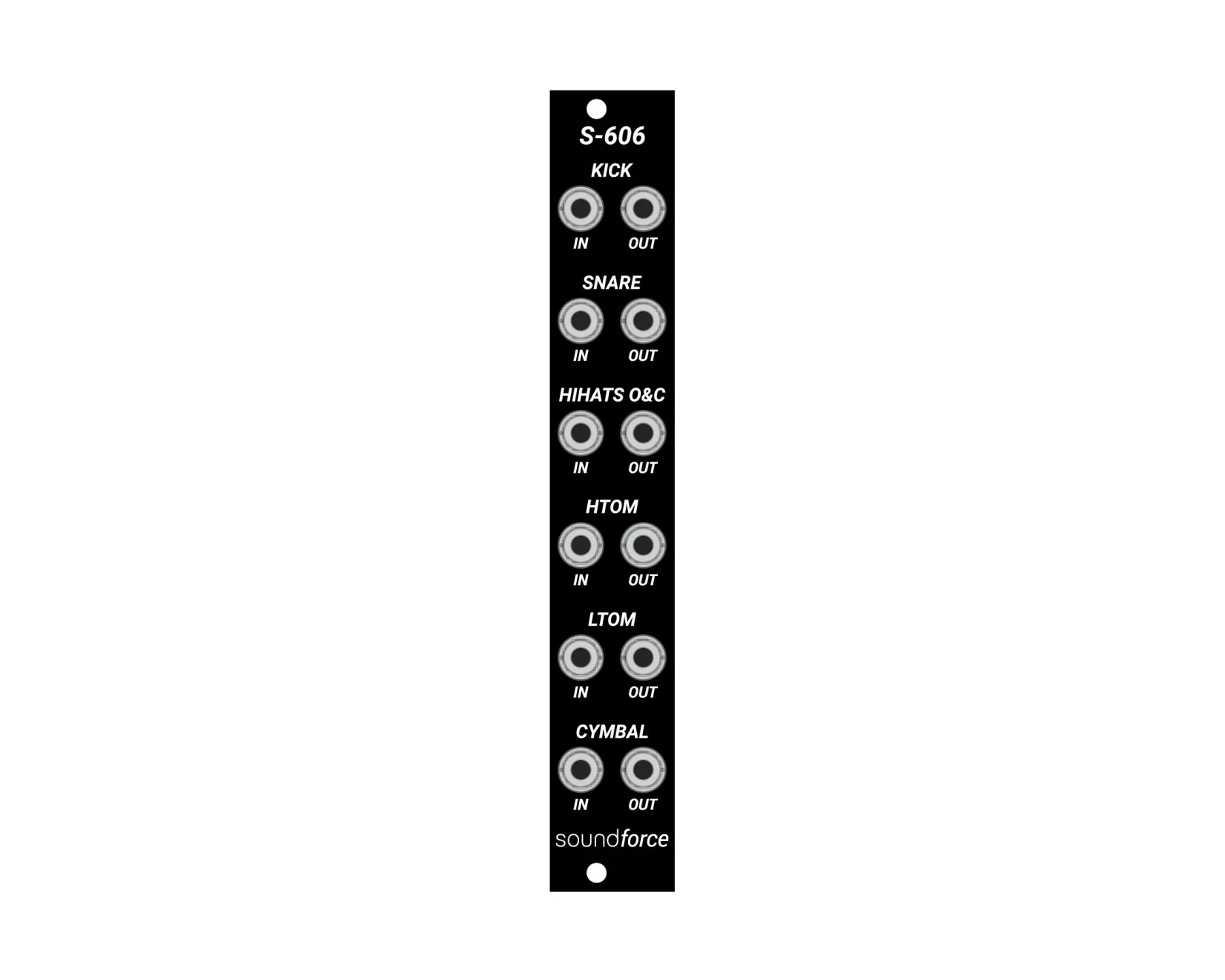

Soundforce S-606

The SoundForce S-606 features the 6 sounds included in the original Roland 606 drum machine, giving you a full drum kit in 4HP. The HH channels holds the open HH sound, but you can trigger closed HH sounds by shortening your trigger/gate signals.

Sounds

The 6 sounds available on separate channels are the one-shot sounds from the infamous 606 drum machine. It uses a big STM32F411 chip to drive the 6 DACs and store the sounds. The samples are baked-in and can’t be changed, unless you load another firmware.

Features

• 6 input jacks to trigger the sounds with +5V signals.
• 6 output jacks for the audio outputs ~10Vpp.

Video: https://youtu.be/ehN26GUSSm4

Product Specs

• Item Number: 34715
• Make: SoundForce
• Model: S-606
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Drum
• Made In: Netherlands
• MPN: SF-606
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 4 HP 38 mm deep
• Power*: 85 mA +12V 11 mA -12V ? mA 5V

* User contributed details
