Intellijel Quadratt 1U + XY IO 1U Bundle

The Quadratt is the shorter and wider brother to the popular Triatt module. The four handy knobs can act as active attenuators (unipolar) or attenuverters (bipolar) depending on the setting of the two-position switches above each one. Each input is normalled to a precision +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 v or -5 to +5 v depending on the position of the mode switch.

The Quadratt 1U is a surprisingly handy module and another great way to fill those last remaining gaps in the 1U row. Use this module to tap into the 3-pin LINK connector used in several Intellijel products, including Mixup, Pedal I/O and the Palette and 2nd Generation Audio Jacks Board in a 7U case.

It uses two 3.5mm TRS jacks, which accept insert cables to provide send/return capability to a pair of Pedal I/O’s, or additional stereo inputs (or outputs) to a pair of Mixups, or one of each. It can also be used as a single send/return pair where  X is the send and Y is the return (great when you have already used the TRS jacks on your Palette for audio output and you need a compact way to send/return from the pedal i/o)

A third 3-pin Link connector on the back panel allows the X and Y jacks to access the L/R (or Send/Return) jacks on a single connected module or case without needing a stereo cable.

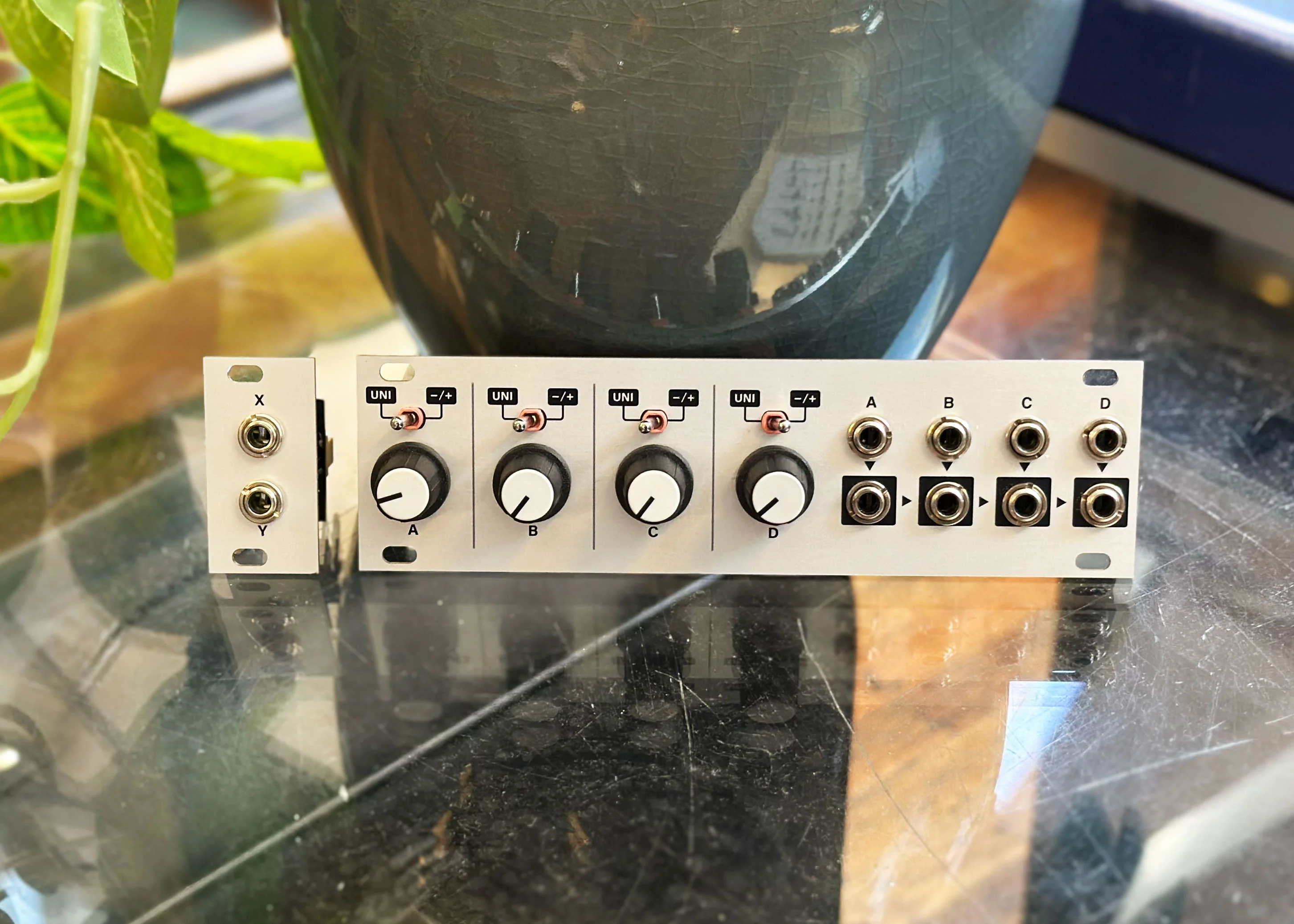

Includes both the Quadratt & XY IO 1U modules as a bundle. Both modules include original box.

Video: https://youtu.be/dWPAl-BsqFU

Product Specs

• Item Number: 35280
• Make: Intellijel
• Model: Quadratt 1U + XY IO 1U Bundle
• Condition: Excellent
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Mixer Utility CV Modulation
• Year: 2020s
• Made In: Canada
• MPN: 35280
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 28 HP 29 mm deep
• Power: 24 mA +12V 23 mA -12V 0 mA 5V
