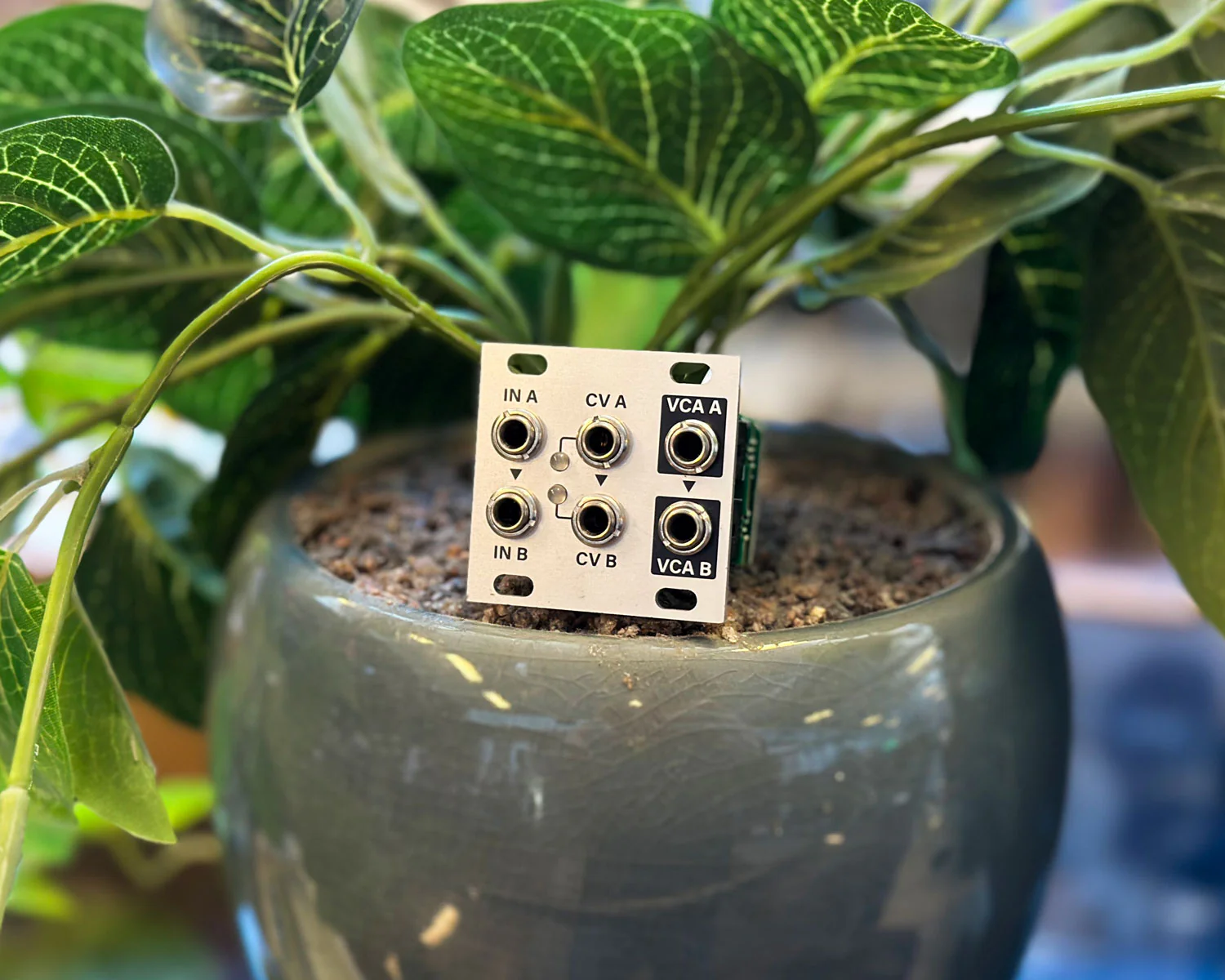

Intellijel Dual VCA 1U

The Intellijel Dual VCA 1U is a compact, 8HP Eurorack module featuring two high-quality, DC-coupled linear voltage-controlled amplifiers. Designed for versatility, it handles both audio and control voltage (CV) signals. Each VCA operates independently or can be linked via normalization: IN A normals to IN B, CV A to CV B, and OUT A to sum with OUT B. This configuration supports stereo processing, CV/audio summing, and voltage doubling. LED indicators provide visual feedback of CV levels. With a shallow depth of 29mm and low power consumption (37mA @ +12V, 40mA @ -12V), it's ideal for skiff or palette cases.

Video: https://youtu.be/01PDu3Na4k4

Product Specs

• Item Number: 37997
• Make: Intellijel
• Model: Dual VCA 1U
• Condition: Excellent
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Dual/Stereo VCA Mixer
• Made In: Canada
• MPN: 37997
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 8 HP 29 mm deep
• Power: 37 mA +12V 40 mA -12V ? mA 5V
