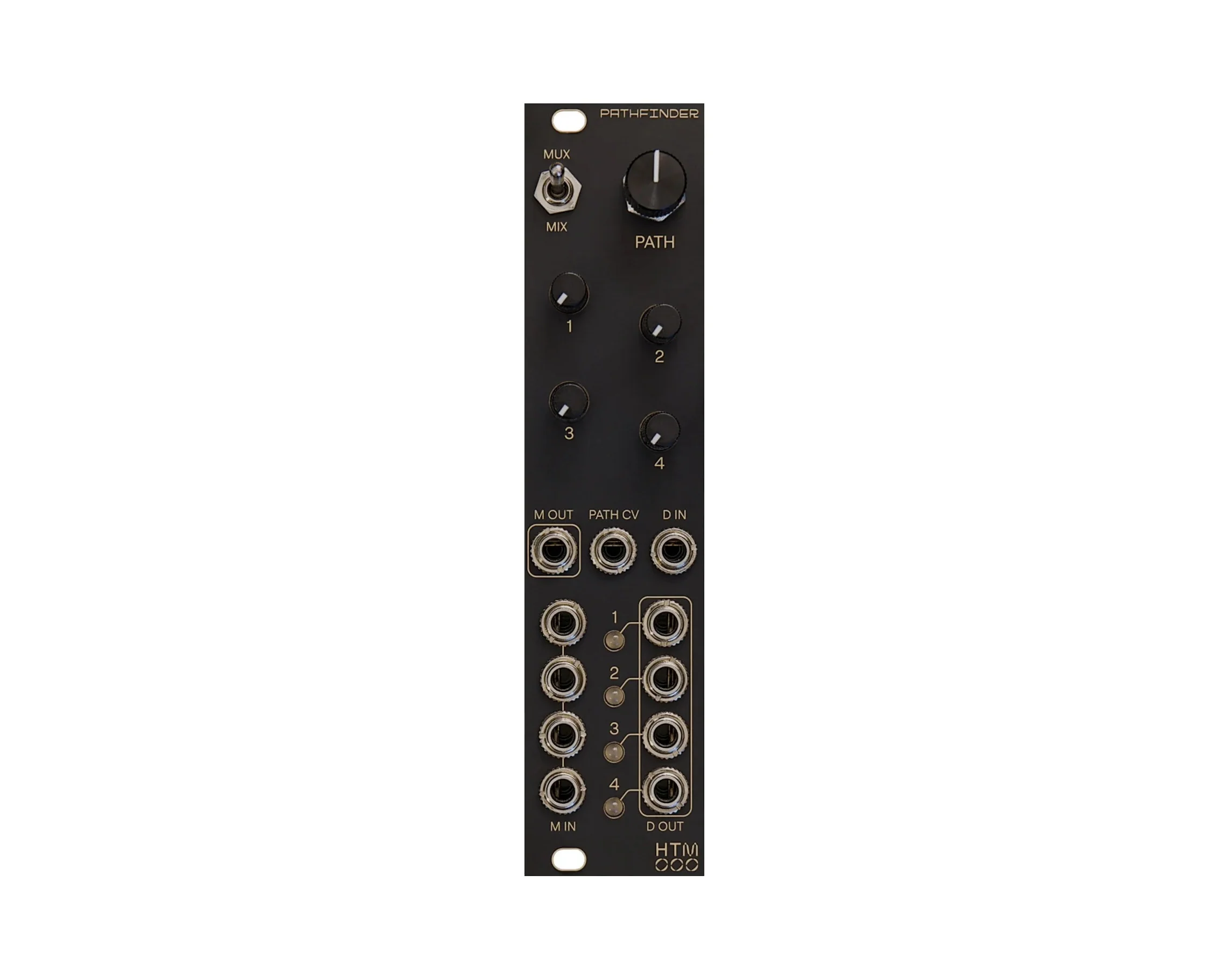

Half-Time Modular Pathfinder

Pathfinder is a highly versatile signal routing module that has its place in any patch. Complex FX chains, creative modulation or audio-rate waveshaping.

It has two complementary, CV controlled routing channels:

• The M channel can be used as a multiplexer or as a mixer (depending on the switch position). In multiplexer mode, one of the four M inputs is routed to the M output. Each M input has a dedicated attenuator.
• The D channel has the opposite behaviour, which is known as a demultiplexer. The D input is routed to one of the four D outputs, while the other three are set to 0V.

The Path knob and CV input set which I/O is active for both channels.

Product Specs

• Item Number: 40005
• Make: Half-Time Modular
• Model: Pathfinder
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Comparator Mixer Switch Utility Waveshaper
• Made In: Switzerland
• MPN: HTM--PATHFINDER
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 6 HP 27 mm deep
• Power: 30 mA +12V 30 mA -12V 0 mA 5V
