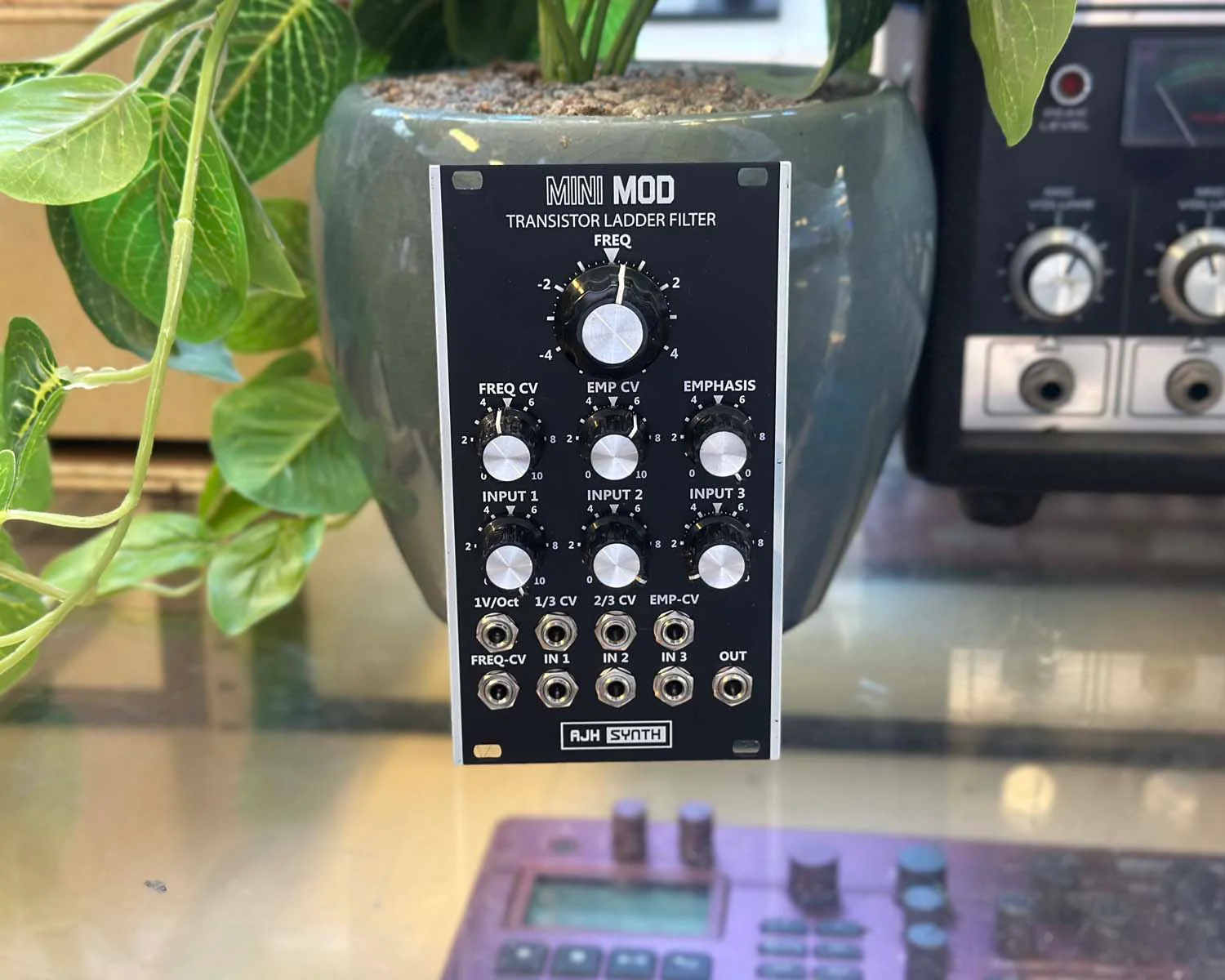

AJH Synth Mini Mod Transistor Ladder Filter

The MiniMod VCF is a faithful recreation of the 24 dB per octave transistor ladder low-pass filter from the early Model D, closely following the original circuit and behaviour. It features a three-channel input mixer, a large cutoff control, and dedicated CV inputs that replicate the original keyboard tracking options, allowing accurate 1/3, 2/3, or full tracking responses.

In addition to manual resonance control, the filter includes voltage-controlled resonance using a fast vactrol, enabling modulation up to audio rates. The circuit will self-resonate and can function as a sine wave oscillator. An internal jumper-selectable overdrive allows the filter core to be driven harder for added saturation and harmonic colour.

Video: https://youtu.be/SNzyMidzOzo

Product Specs

• Item Number: 41137
• Make: AJH Synth
• Model: Mini Mod Transistor Ladder Filter
• Condition: Very Good
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Filter Mixer
• MPN: 41137
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 14 HP 33 mm deep
• Power*: 45 mA +12V 30 mA -12V 0 mA 5V

* User contributed details
