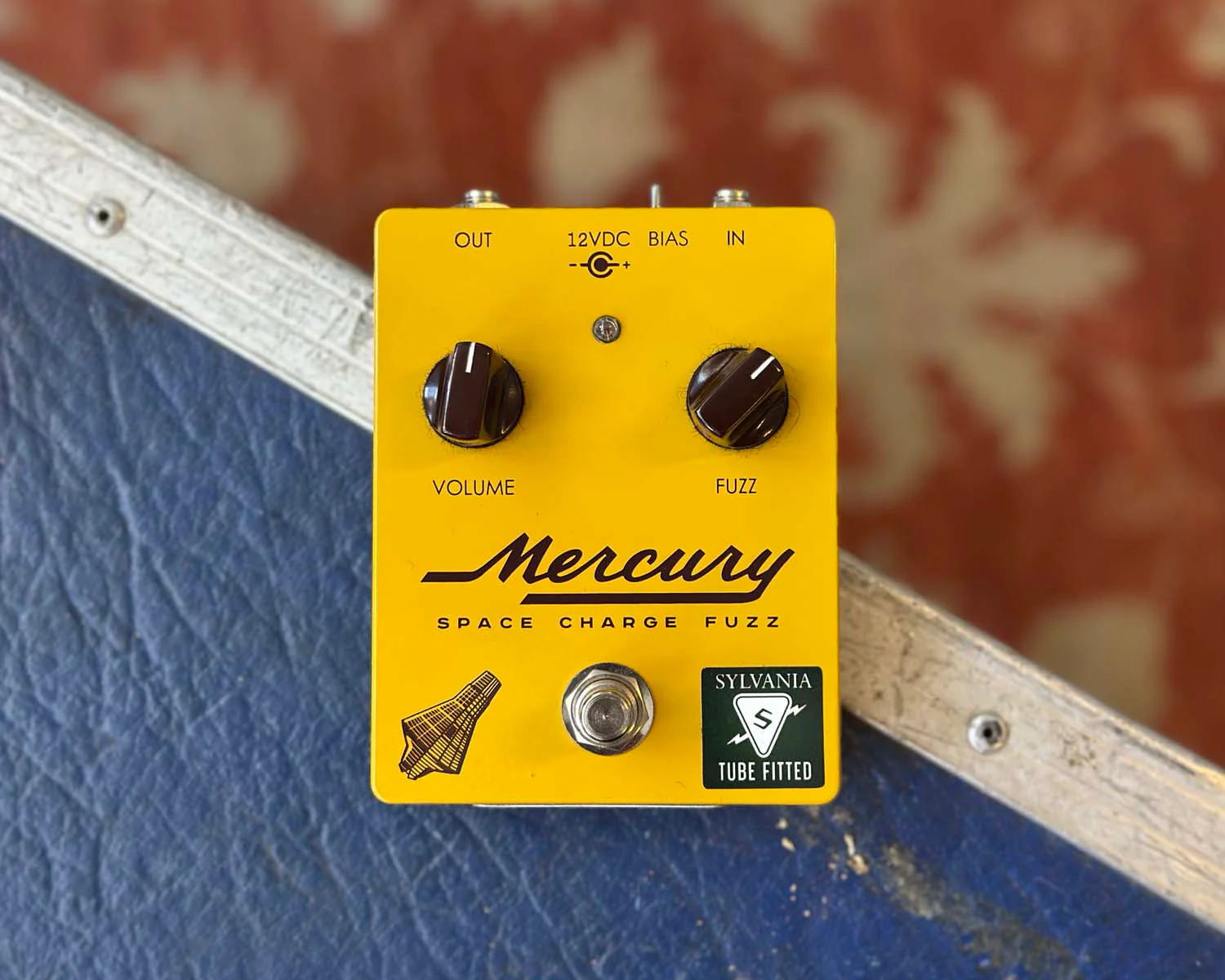

Effectrode TF-2A Mercury Space Charge Fuzz

The Effectrode Mercury is a hybrid valve fuzz that combines a dual-triode vacuum tube with vintage crystal diodes to create a wide range of harmonically rich drive and distortion sounds. Two tube stages generate warm, even-order harmonics before the signal is shaped by diode clipping to add bite and upper harmonic content, giving it a blend of fullness and edge. The result is a highly dynamic fuzz that can move from low-gain, amp-like overdrive to dense, saturated distortion with long, smooth sustain. At lower settings it cleans up naturally from the guitar’s volume control while retaining clarity and string definition. A bias switch lets you alter the feel and response of the second tube stage for different textures and compression.

TL;DR:

All-valve analogue signal path running at high plate voltage Hybrid tube and crystal diode fuzz circuit Fuzz control for wide gain range from overdrive to heavy distortion Three-position bias switch for feel and response adjustment True bypass footswitching Fitted with NOS Sylvania 6948 pencil tube 12V DC power supply included, 1.5A, centre-positive Custom Dakaware-style knobs Inspired by the Mercury space program and John Glenn’s 1962 orbital flight

Includes box, manual and aftermarket 12V power supply.

Video: https://youtu.be/nP7AKb6A43g

Product Specs

• Item Number: 41157
• Make: Effectrode
• Model: Mercury
• Condition: Very Good
• Finish: Yellow
• Categories: effects-and-pedals ⇒ fuzz ⇒ pedal
• Made In: United Kingdom
• MPN: 41157
