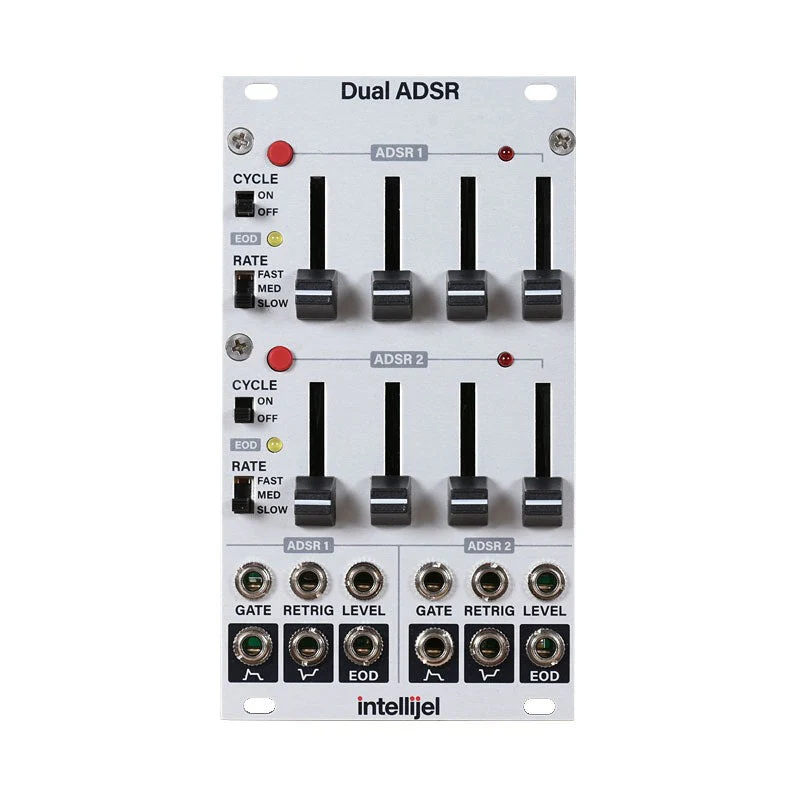

Intellijel Dual ADSR

The circuit is based in part on the Roland SH-101/System100m design with several enhancements. Features manual GATE buttons, three timing ranges: (1 second, 10 second, 1 minute A/D times), normal and inverted outputs, End of Decay (EOD) logic output, cycle mode (which GATE logic control), retrig input (allows re-triggering of the envelope if source gate held high) and dynamic control of the envelope output level (each ADSR is routed through a linear VCA and the control is normalled to +5V via the LEVEL jack. You can patch another control source like an LFO or VELOCITY level from a keyboard to this jack.

Superceded by Tangrams

Video: https://youtu.be/4mfa3pnynIo

Product Specs

• Item Number: 4861
• Make: Intellijel
• Model: Dual ADSR
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Dual/Stereo Envelope Generator
• Made In: Canada
• MPN: DUAL-ADSR-3U
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 14 HP 38 mm deep
• Power: 60 mA +12V 49 mA -12V 0 mA 5V
