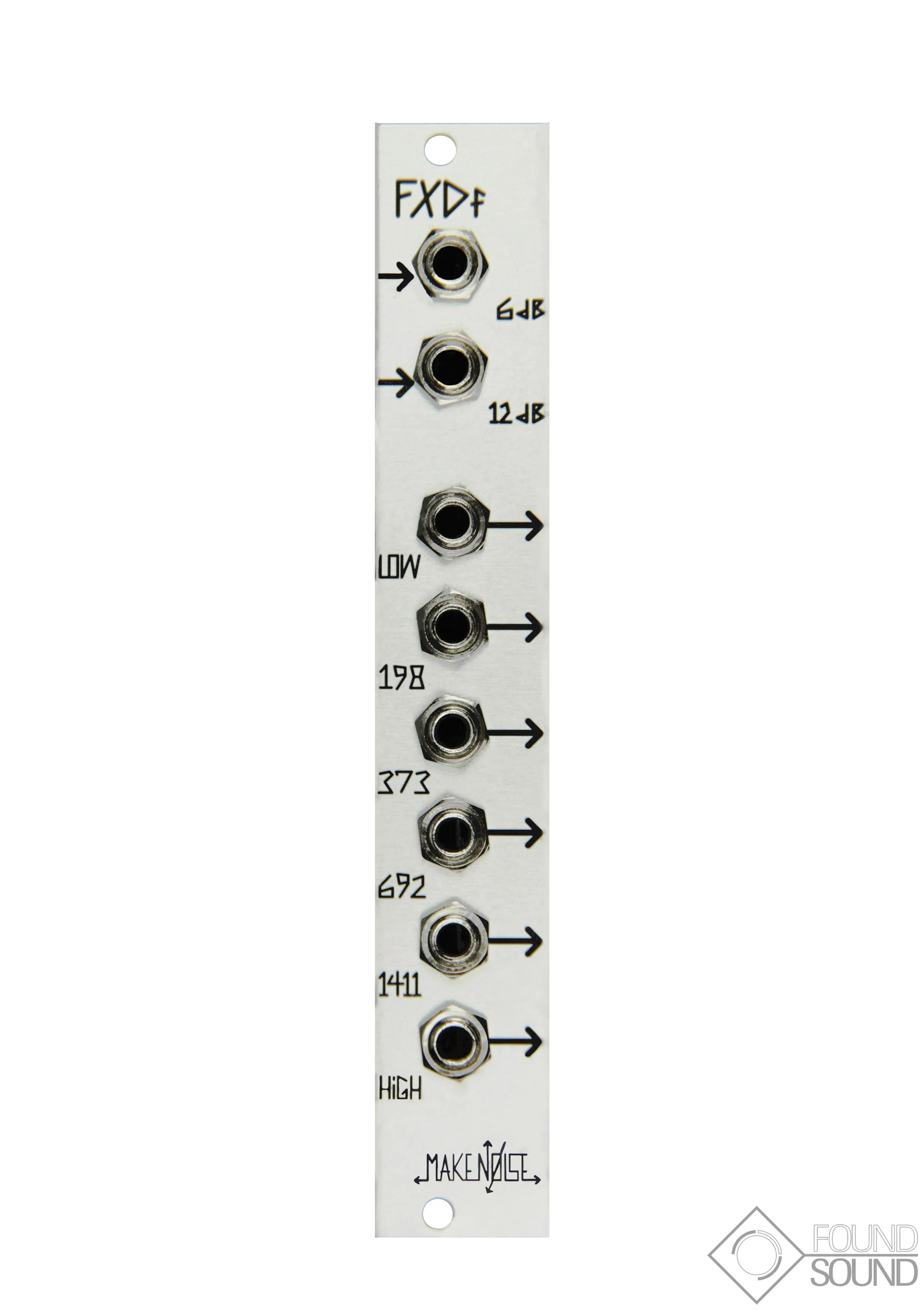

Make Noise FXDf

The FXDf is a 6 Band Fixed Filter. Traditionally fixed filters are large modules having 8 to 10 bands, each with a manual level control, but rarely any voltage control. The FXDf is so small we had to abbreviate the words Fixed Filter and by providing individual outputs as well as a header for normalled connection to our RxMx 6 channel macro-lowpass-gate module, voltage control over level of each band is possible through patching. Features simultaneous 6db/Octave and 12db/Octave inputs, 6 filter bands spaced at 11 to 13 semitones and cover a range of 6 octaves, and individual outputs for each filter.

Video: https://youtu.be/CAwxbxlNVHM

Product Specs

• Item Number: 6101
• Make: Make Noise
• Model: FXDf
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Filter Frequency Divider
• Made In: United States
• MPN: FXDf
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 4 HP 24 mm deep
• Power: 27 mA +12V 27 mA -12V 0 mA 5V
