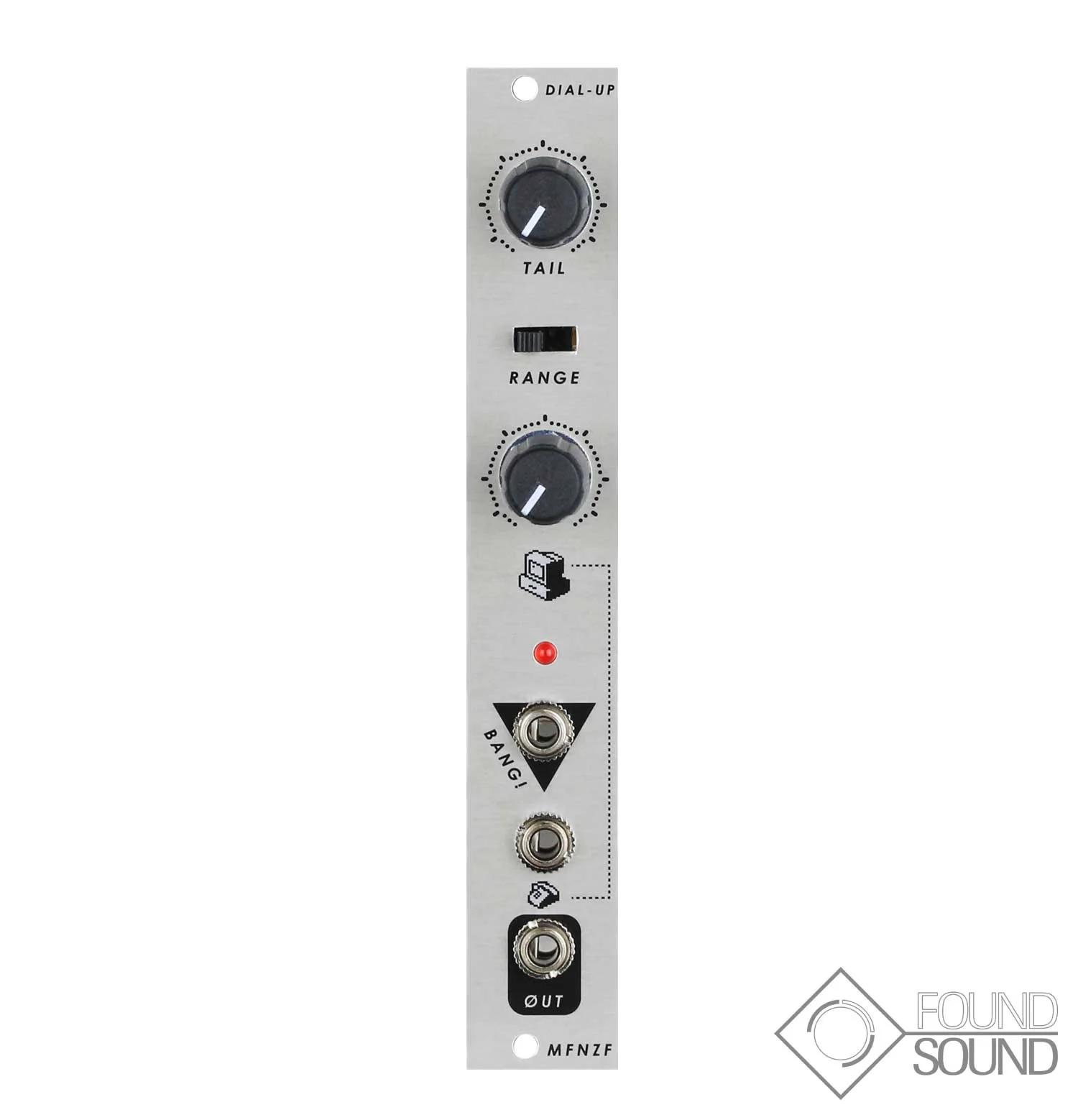

Moffenzeef Modular Dial Up

DIAL-UP! The oscillator core has a single knob (lil' computer) which scrambles the glitch algorithm. Bipolar CV control over this parameter can be accessed by the CV input (lil' phone). The oscillator goes into an onboard transistor VCA with built in decay envelope. Decay times can be changed with the "tail" knob as well as the three position range switch which selects the max decay range from low, medium, to high. The BANG! input does not only accept triggers, it can also be used as an envelope follower.

It's difficult to say what exactly the knob and CV do, as this parameter is responsible for controlling several different pieces of the code at once. It's a sort of hybrid between the overall pitch and the amount in which the module glitches out.

Brand new with warranty.

Video: https://youtu.be/dxGIGXZ13uc

Product Specs

• Item Number: 8564
• Make: Moffenzeef Modular
• Model: Dial Up
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Drum Noise
• Made In: United States
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 4 HP 20 mm deep
• Power: 30 mA +12V 15 mA -12V 0 mA 5V
